4-2-9. Adjustment of the cutter height
[Adjusting procedure]
1) Turn off the power of the device.
2) Move the head on the platen, remove the head cover.
3) Loosen two cutter BKT mounting screws until they are temporarily fastened.

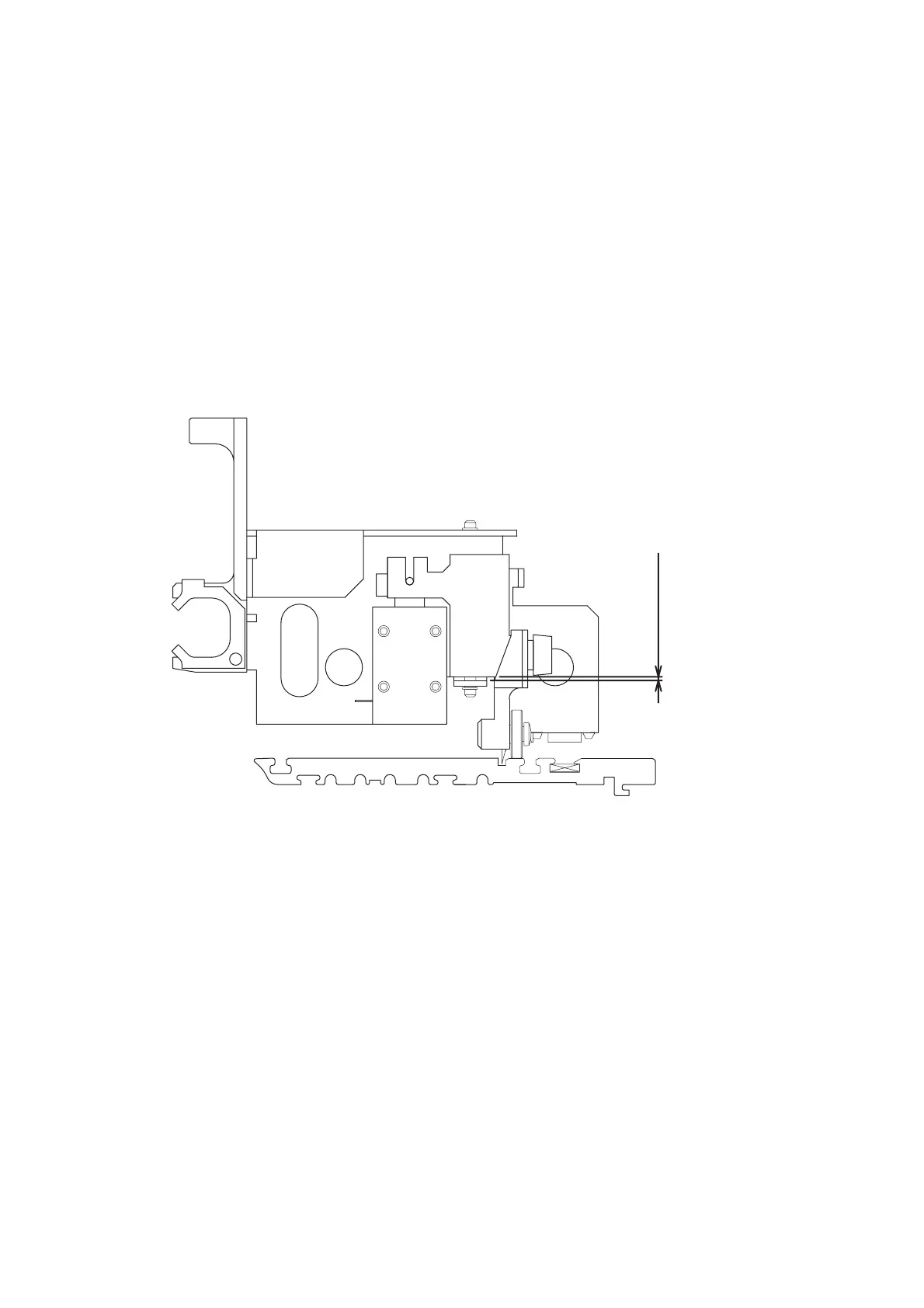

4) When the cutter tip roller is applied to the platen surface, secure the cutter holder to the
position where the gap between the cutter BKT and the cutter holder becomes 1 mm.
1 mm
