– 4.22 –
[Disassembling procedure]
Refer to [5-3-6. CAPPING].

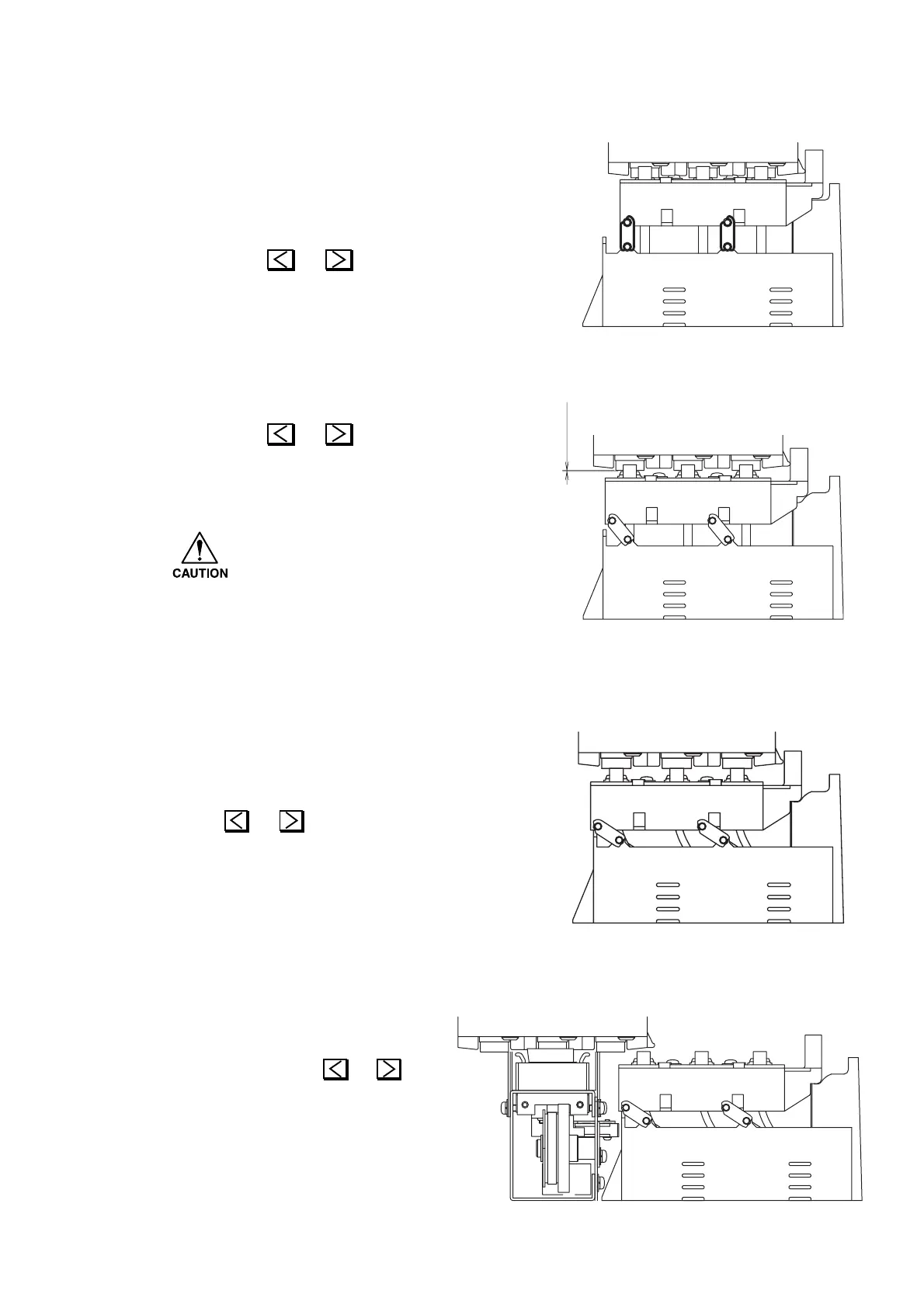

1) Select the Lower Head height.
2) Adjust the cap position.
Press the
or key to move the
position so that the Cap lever becomes
vertical.
3) Adjust the absorb position.
Press the
or key to move the
position so that the gap between the head
and the cap becomes 0.5 mm.
• Adjust the position so that the gap
on the front side of the cap
becomes 0.5 mm.
• The cap is designed so that it is
inclined. (The back side is about
0.5 mm lower than the front side.)
4) Adjust the Flashing position.
Move the flashing so that the center of the
cap agrees with the center of the head, using
the
or key.
5) Adjust the Wiper position.
Move the wiper so that the center of
the wiper agrees with the center of
the head, using the
or key.
0.5 mm
To Next Page
