– 4.21 –
[Adjusting procedure]

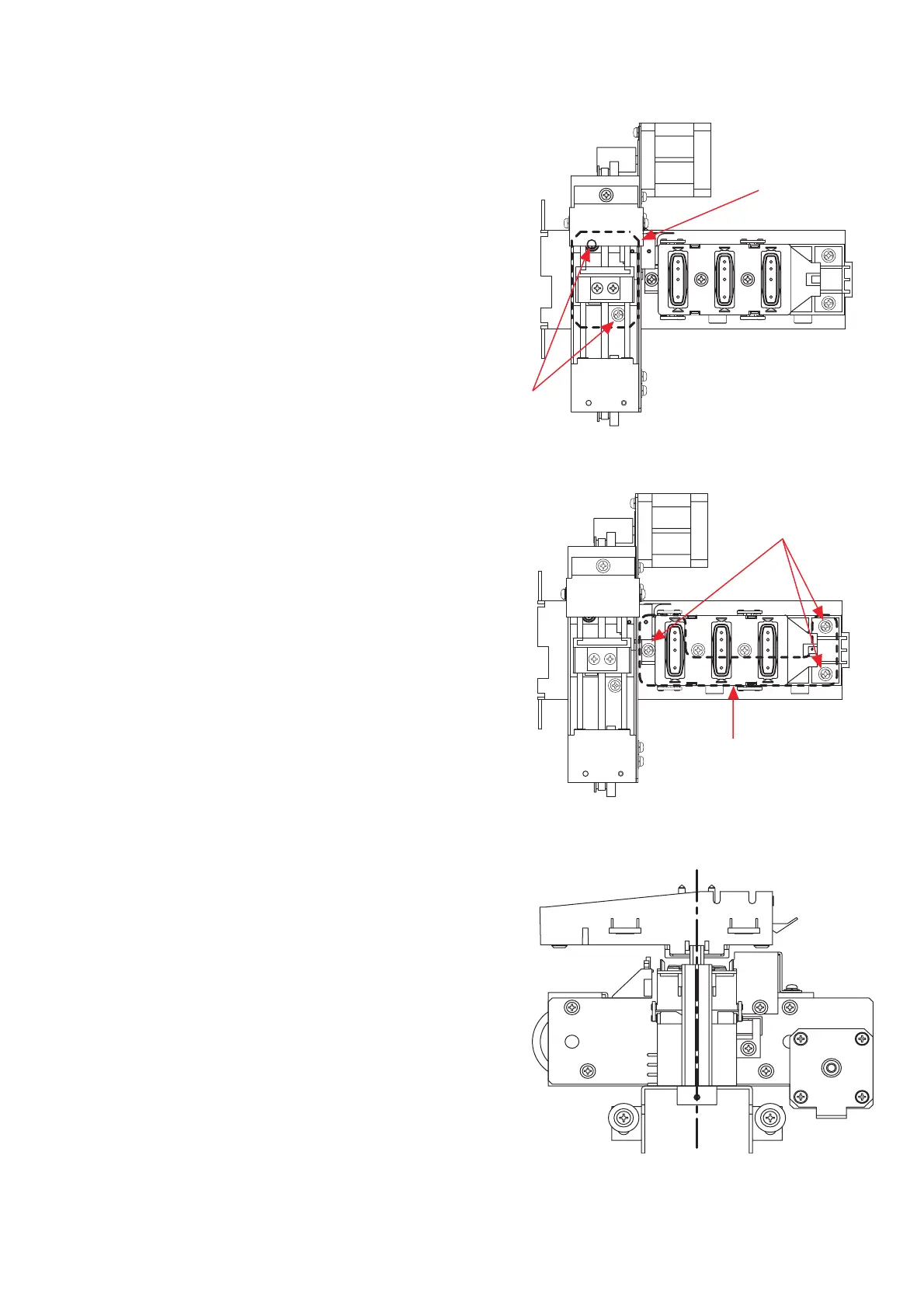

Wiper height
1) Select the Upper Head height.
2) Remove two M3 screws to remove the
wiper assy.
3) Adjust the number of wiper adjusting plate
0.5 (t=0.5) under the wiper assy.
4) Attach the wiper assy and then make sure
that the gap between the head and the wiper
is about 0.5 mm.
* At the time of shipment, one Wiper
adjusting plate 0.5 is attached.
Cap height
1) Select the Lower Head height.
2) Remove three M3 screws to remove the cap
base assy.
3) Adjust the number of cap adjusting plate
0.5 (t=0.5) under the cap base assy.
4) Attach the cap base assy and then make sure
that the gap between the head and the cap
housing is about 0.5 mm.
* At the time of shipment, one to three Cap
adjusting plates 0.5 are attached.
Cap side position
1) Remove the right cover (molded products
only).
2) Loosen three M3 screws which secure the
cap base.
3) While visually checking from the right side,
secure the cap base at the position where
the head is stored between cap guide
notches.
Cap adjusting plate 0.5
(Insert from front side)
Screw (M3)
Screw (M3)
Wiper adjusting plate 0.5
To Next Page
