3) Adjust procedure of gap of main guide
shaft to platen.

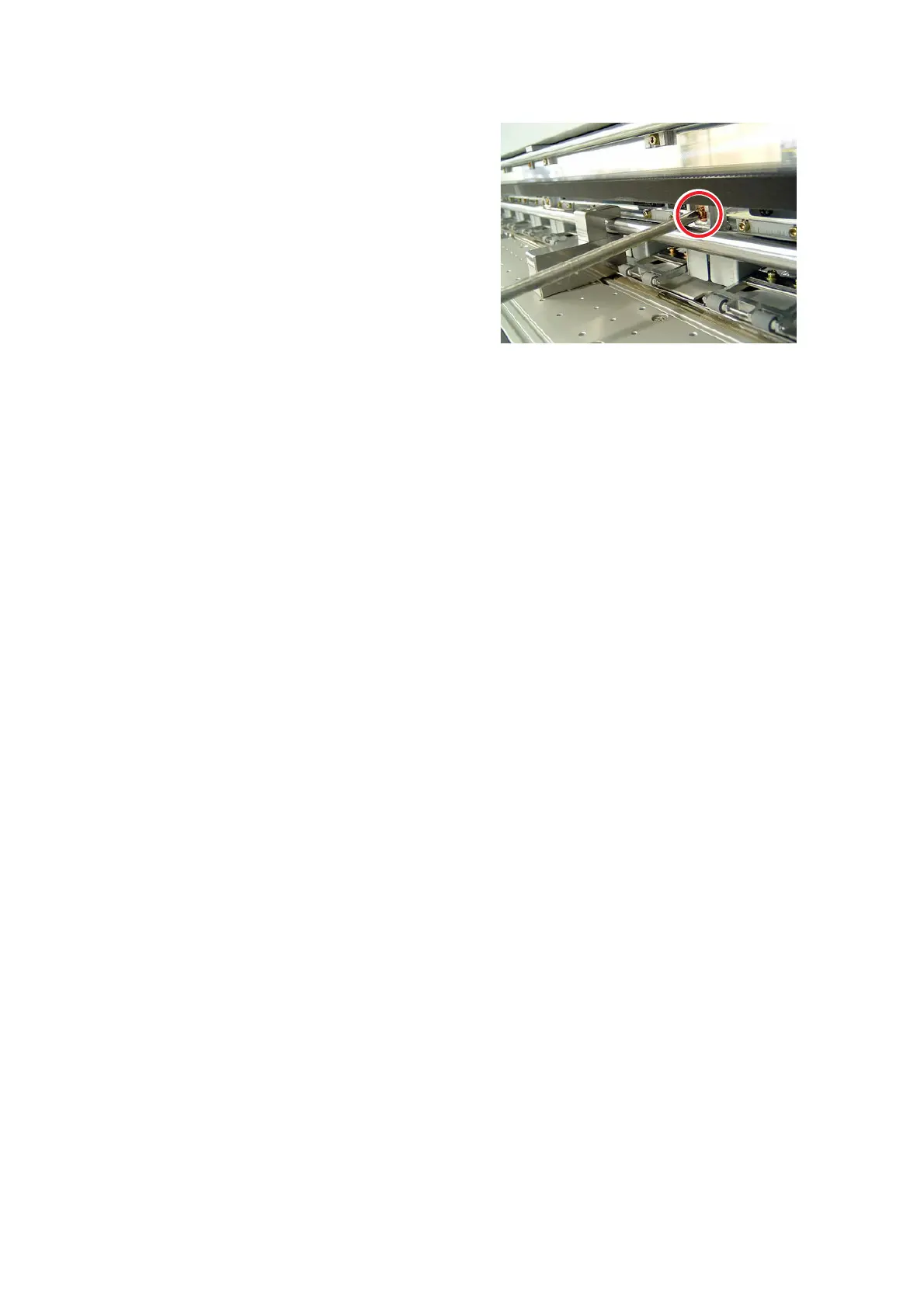

a) With checking height adjustment of
main guide shaft jig(M006277),
tighten up the screw to check degree
of parallelization.
