12 - 6 Operator’s Manual
12 Probes and Biopsy

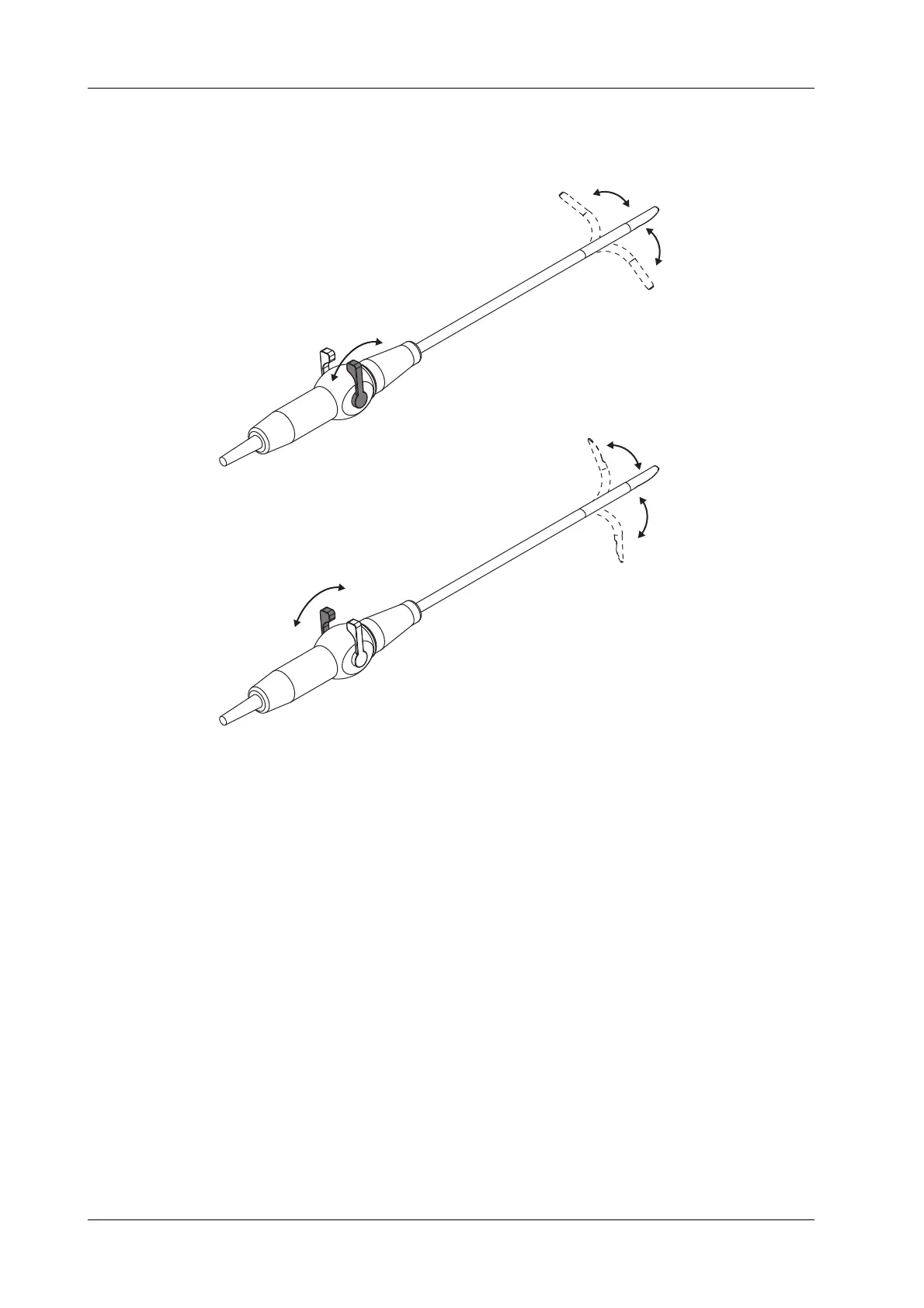

The flexible shaft can be deflected up to 90° (tolerance: -5°~10°) in four planes of up, down, left
and right. Use the 2 deflection levers to adjust the distal tip with transducer as the following figure.
When the two deflection levers are in a vertical position with the handle, the distal tip will return to
the zero position.
12.1.2 Probe Functions by Part
The basic structures and corresponding functions of probes are basically the same; take the
following probe as an example.
Left
Right
Zero position
Left
Right
Up
Down
Zero position
Up
Down
