Mindray TE9 User Manual

2 - 10 Operator’s Manual
2 System Overview
2.9 ECG Module

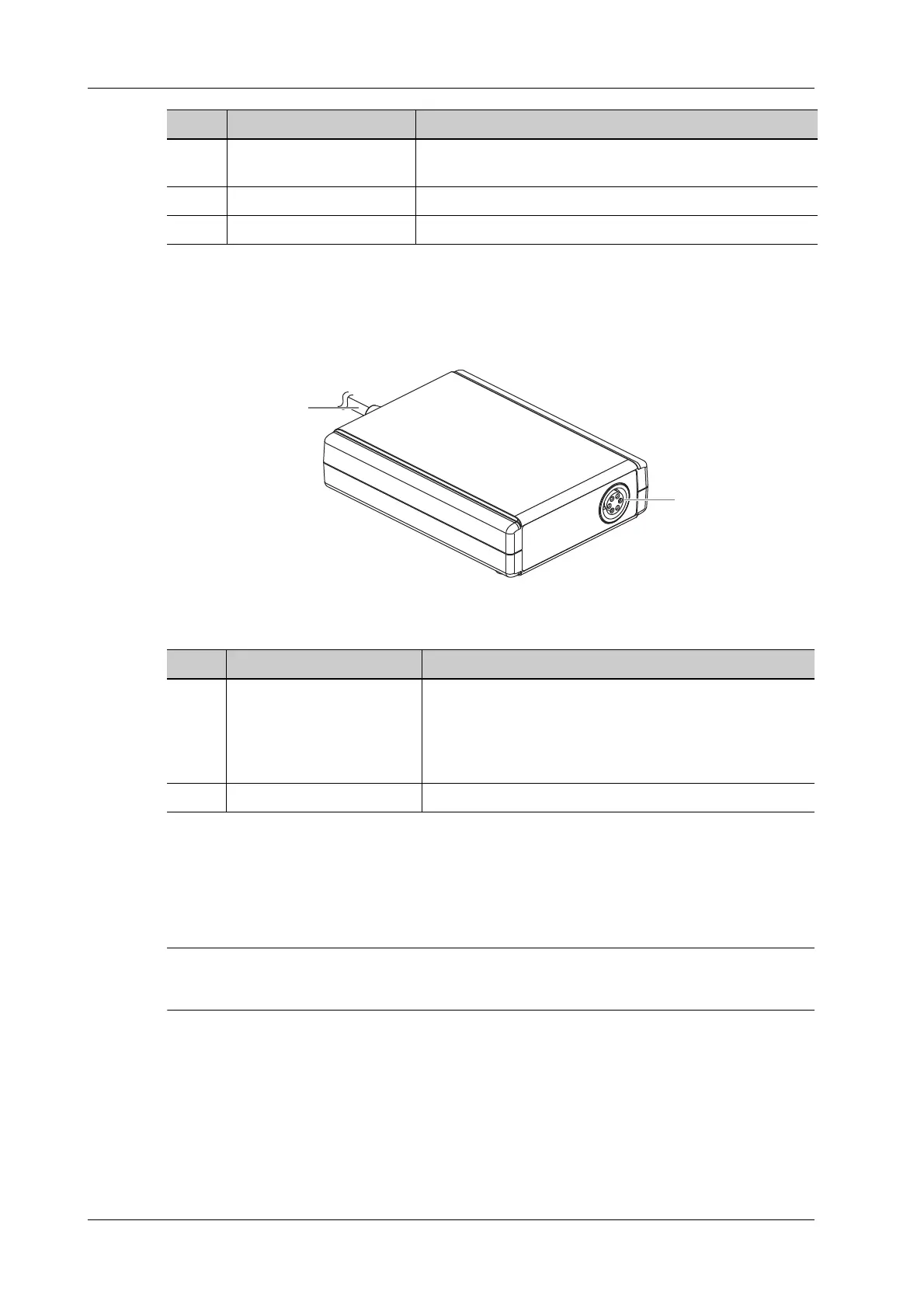

Figure 2-3 ECG module
2.10 Basic Operations
2.10.1 Screen Display
TIP:
The contents displayed on screen may differ depending on the screen size.
10. Serial port for connecting
ECG
Connects with the ECG module
11. Probe holder Used for placing the probe.
12. Probe ports Connects a probe to the main unit.
No. Name Function
No. Name Description
1. Serial connector Connects to the serial port of the system.
NOTE:
Ensure the system is powered off before connecting the
ECG module.
2. ECG lead port Used for ECG signal input.
1
2
