Mindray TE9 User Manual

12 Probes and Biopsy
Operator’s Manual 12 - 33

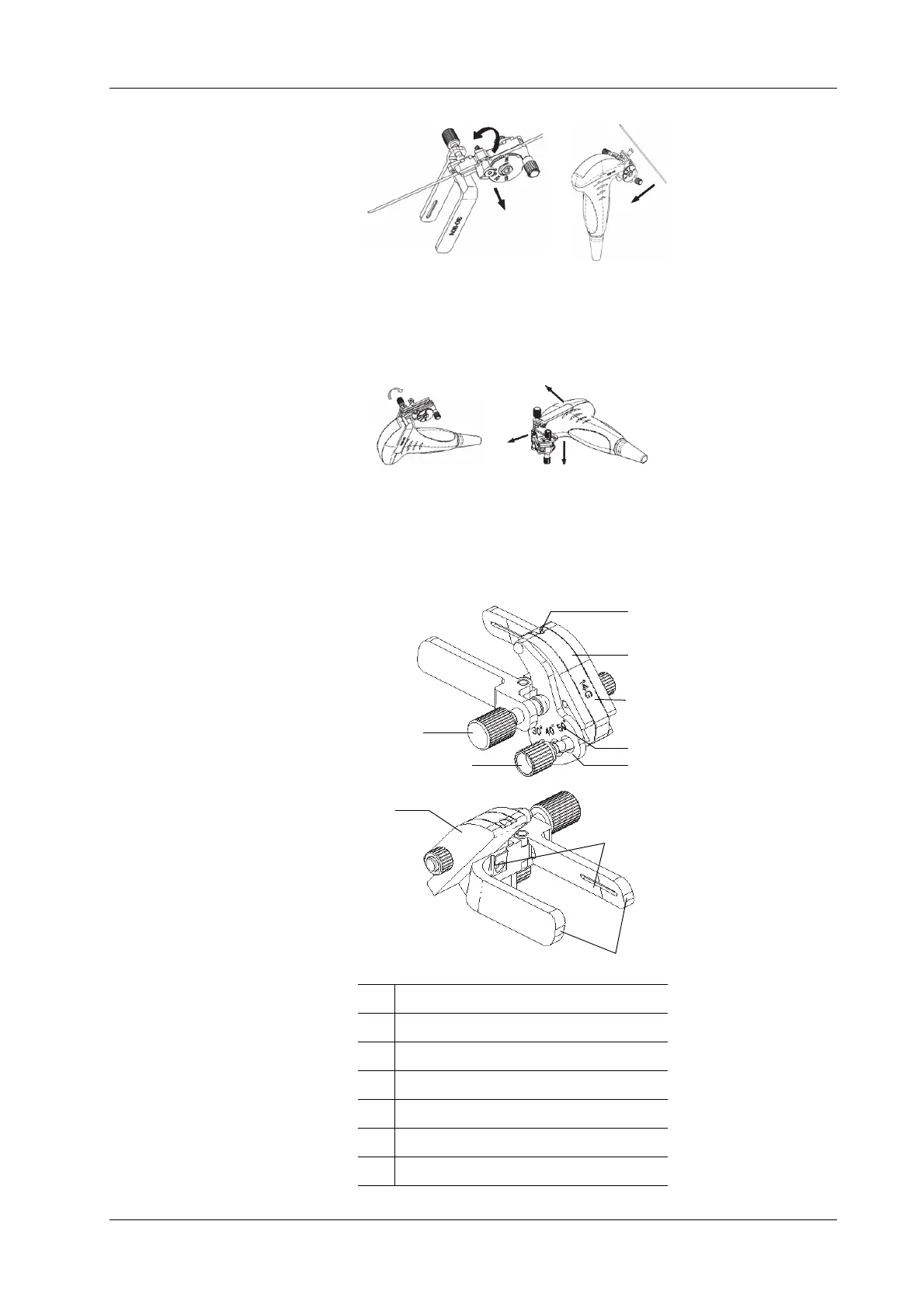

a. Pull the lock pin and open up the V-shaped cover to expose the needle.
b. Separate the bracket and the probe from the needle.
5. Remove the needle-guided bracket:
a. Screw the pinch nut to release the needle-guided bracket.
b. Separate the bracket and the probe.
NGB-016 Metal-needle detachable needle-guided bracket
1 Pinch nut of bracket
2 Angle pinch nut
3 Angle block
4Clamp
5Groove
6 Angle-adjusting base
7 Angle shift sign
1
2
3
4
5
6
7
8
9
10
