12 - 44 Operator’s Manual
12 Probes and Biopsy

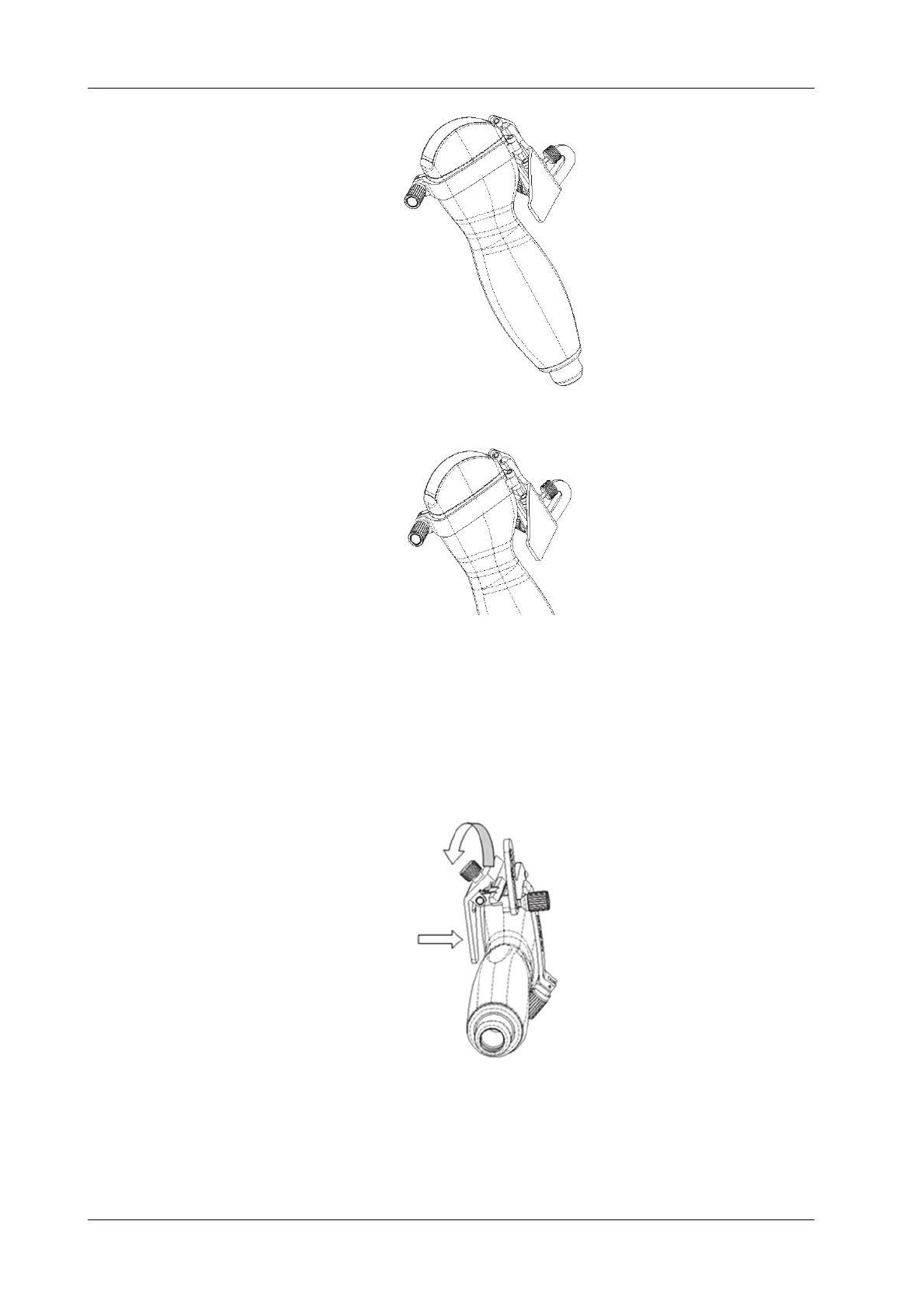

c. Rotate the retaining nut to fix the bracket and the probe.
2. Adjust the needle angle to the proper shift as required:
a. Loosen the angle pinch nut.
b. Adjust the angle block to the desired level.
c. Tighten the angle pinch nut.
3. Insert the biopsy needle:
a. Hold the probe. Press the biopsy needle to separate needle guided V-shaped block from
pressure position of the needle
b. Put the needle into the needle guided-bracket, and the needle leans to V-shaped block.
