12 Probes and Biopsy

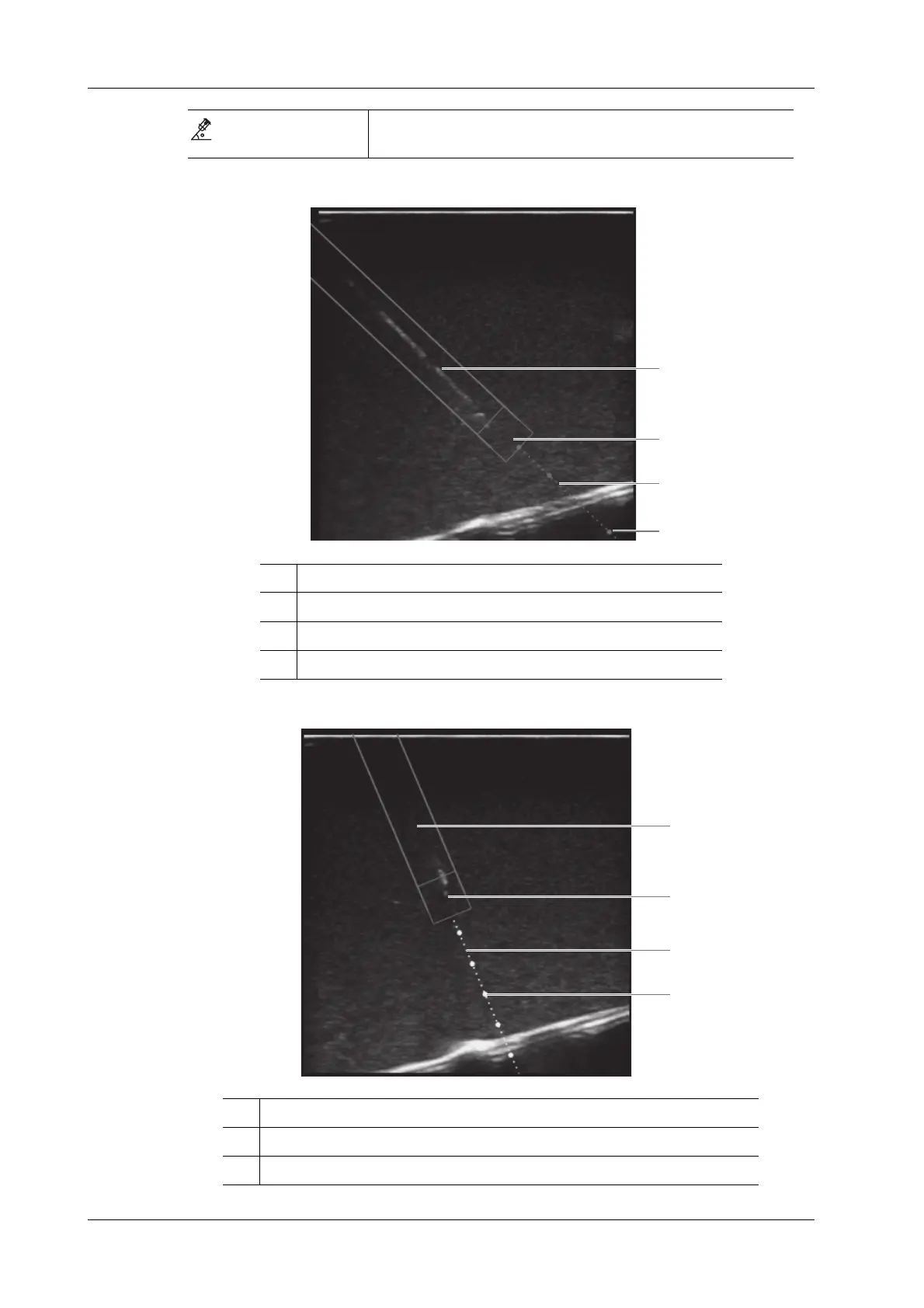

In Plane Needle Guidance GUI
Out of Plane Needle Guidance GUI
Appears when the insertion angle of a needle relative to the skin
surface exceeds 60° to notify users to adjust the angle.
1 Needle position in the ultrasound plane
2 Needle tip position in the ultrasound plane
3 Needle guidance trajectory
4 Scale of guideline (5 mm/scale)
3
4
2
1
1 Needle projection position in the ultrasound plane
2 Position at which the needle cross the ultrasound plane
3 Projection position of the needle guidance trajectory in the ultrasound plane
3
4
2
1
