2 System Overview
Operator’s Manual 2 - 23

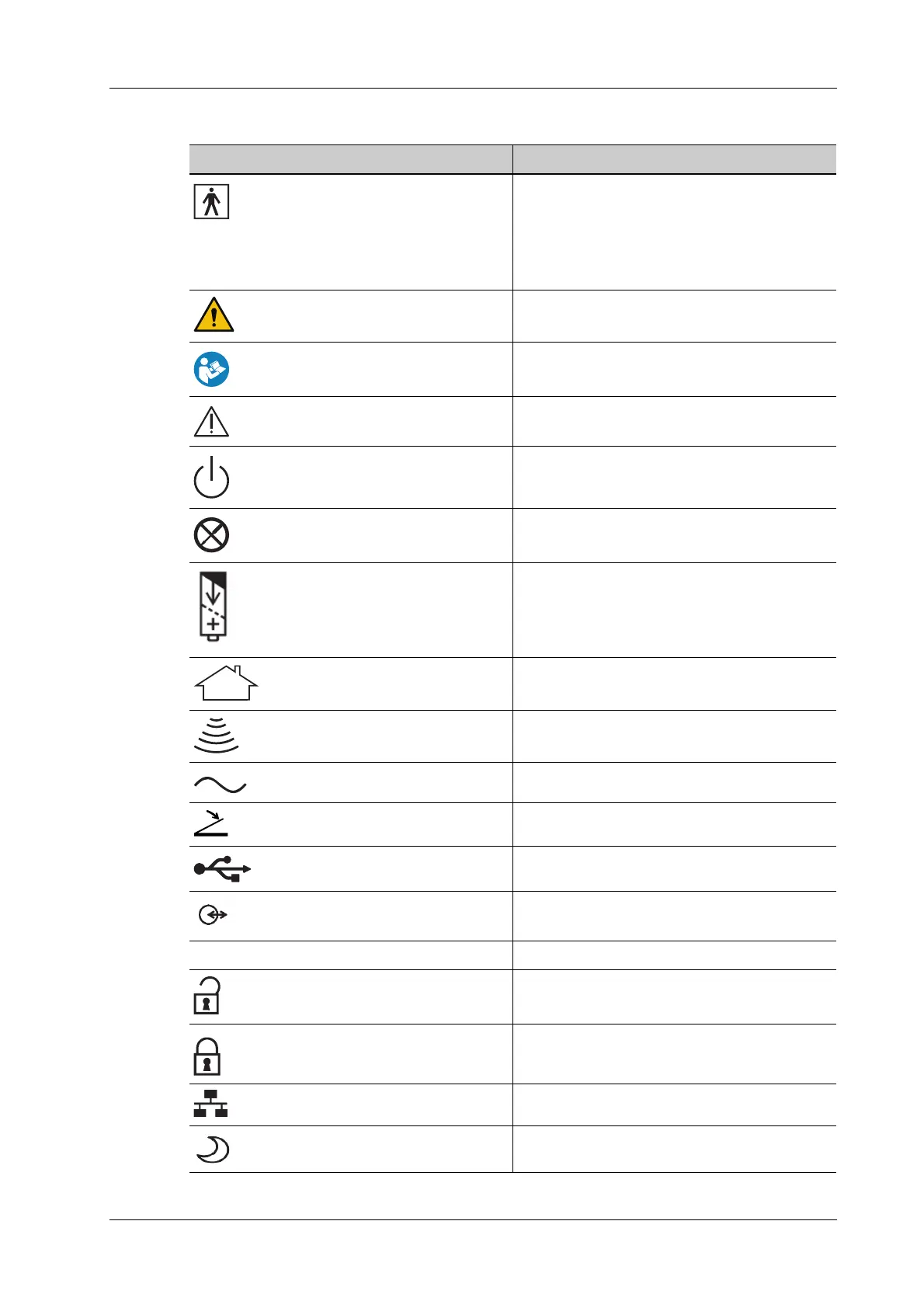

The name, pattern and meaning of each symbol and warning label are described as follows:
Symbol Description
Type-BF applied part
The ultrasound probes connected to this system
are type-BF applied parts.
The ECG leads within this system is type-BF
applied part.
General warning sign
Read this information carefully before using the
system.
Caution!
Standby
No user serviceable parts (applied to the power
adapter)
Battery installation position
Indoor, dry location use only (applied to the
power adapter)
Transducer sockets
AC (Alternating current)
Foot switch
USB port
Extending port
HDMI High definition multimedia interface
Unlock position
Lock position
Network port
Standby status indicator
