7-26 Structure and Assembly/Disassembly
pull out the corresponding cable plugs.

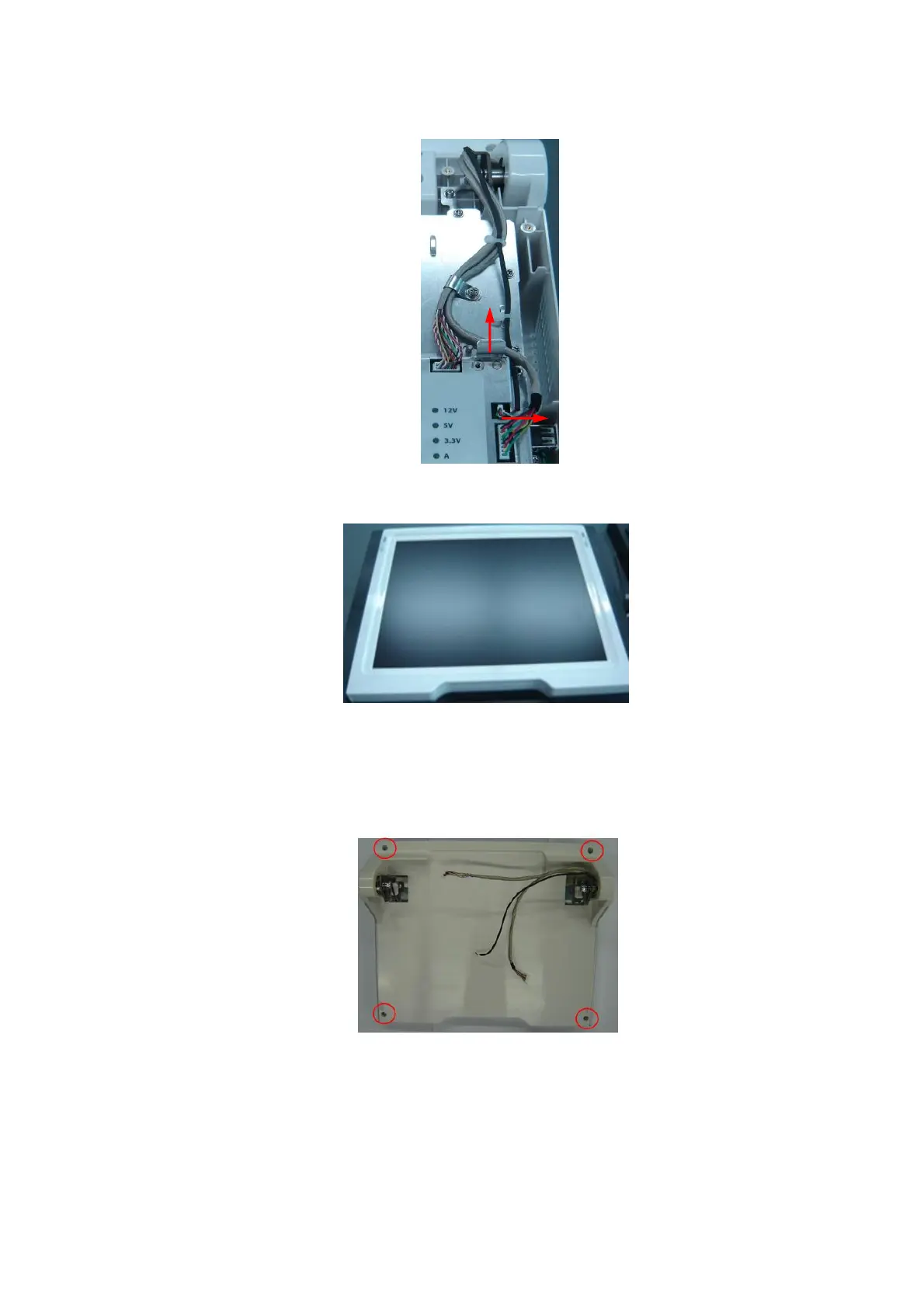

Figure 7-40 Disassemble the Display assembly
4. Pull the display assembly upwards to make it separated from the main unit.
Figure 7-41 View of Display Assembly
7.4.7.1 Backlight Inverter Board
1. Remove combination screws (4 M3X8) used to be secured the display on the front cover of
the main unit by a screwdriver.
Figure 7-42 Disassembly of Display Front Cover (1)
2. Tilt the frontal/rear cover of the monitor assembly by external force.
