Mindray Z6 Service Manual

2-6 Product Specifications
No.
Name
Description
Function
48
/
Indicator 3
Standby indicator
Standby: blinking in orange
Other status: light off
49
/
Indicator 4
HDD status indicator
Read/ write: blinking in green
Other status: light off
NOTE: DO NOT move the machine when the indicator
blinking in green. Otherwise the HDD may be damaged
by sudden shake.

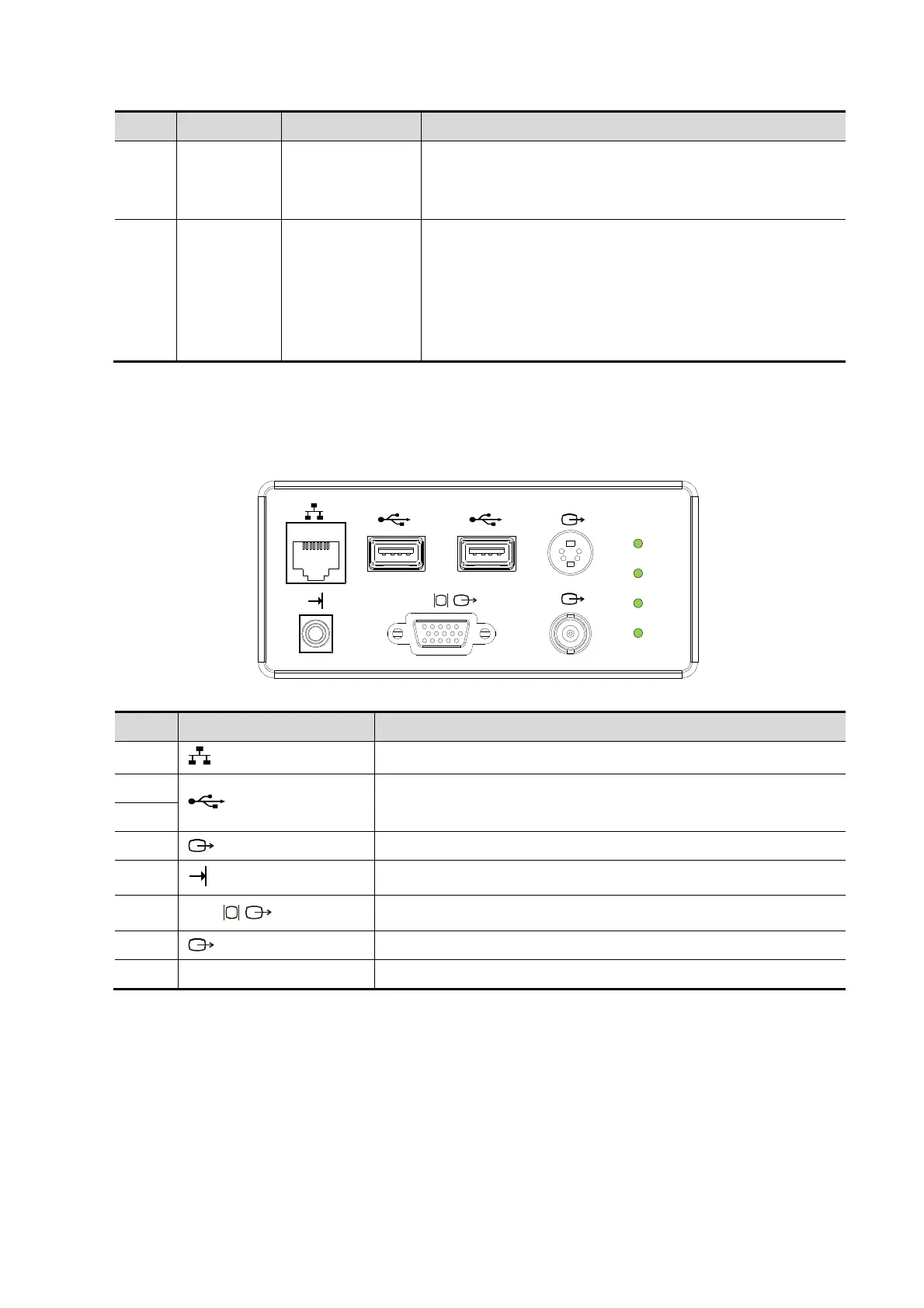

2.1.2.2 IO Panel
The IO panel is on the back of the main system.
<2> <3> <4>
<1>
<5> <6> <7>
VGA
12V
5V
3.3V
A
<8>
No.
Symbol
Function
1
Network port
2
USB ports
3
4
Separate video output, connecting video printer or monitor
5
Remote control port
6
VGA
VGA signal output
7
Composite video output
8
/
Power indicator
