Function and Performance Checking Method 5-9

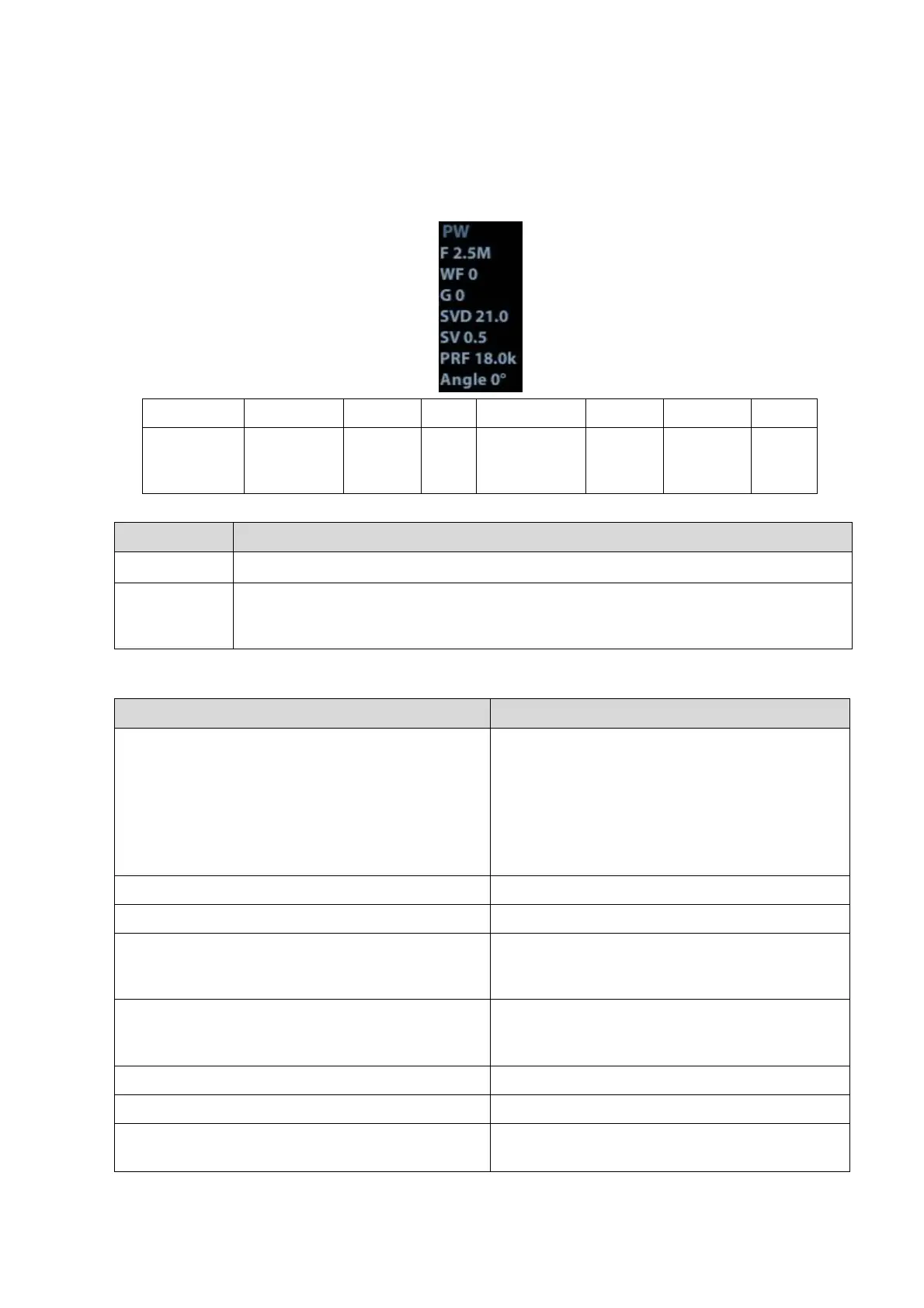

5.4.2.4 PW Mode
 In PW Mode scanning, the image parameter area in the right corner of the screen will display
the real-time parameter values as follows:
Display
F
G
WF
PRF
SVD
SV
Angle
Parameters
Frequency
PW/CW
Gain
Wall
Filter
Pulse
Repetition
Frequency
Sample
Volume
Depth
Sample
Volume
Size
Angle
 Parameters that can be adjusted to optimize the PW Mode image are indicated in the following.
Adjustment
Items
Control Panel
Gain、Frequency
Menu
Frequency, Acoustic Power ,Scale, Wall Filter, Speed, Duplex/Triplex, SV, Quick
Angle, Angle, Invert, Baseline, Trace Area, T/F Res, Audio, Auto Calc, Auto Calc
Cycle, Auto Calc Para, HPRF, Dynamic Range, Gray Map, Tint Map, Display Format
5.4.2.5 Cine Review
Procedure
Standard
 Press [Freeze] key to freeze an image, and
the [Cine] key indicator lights on. The system
automatically enters the manual cine
status.(Precondition: set “Status after Freeze”
to be “Cine”)
 Press iStation, click [Review] or press
<Review> to open the cine file
 Cine Review status
 To enter cine auto cine review status.
Roll the trackball
Manual cine review
Click image menu->[Auto Play]
Activate auto cine play status
Manually review the images until the frame which
you want to set it as start point, and then click [Set
First Frame] to set a start mark.
Set first frame:
Manually review the images until the frame which
you want to set it as end point, and then click [Set
End Frame] to set an end mark.
Set end frame
Click [Auto Play]
The cine is played within the setting region.
Then press the [Cine] key again.
Cine review stops
 Press the <Freeze> key to defreeze the
image.
 <Freeze> backlight is off, the image
returns to the scanning process and exits
