Minebea CC-Link CSD-892-73 User Manual

8
Installation & Wiring

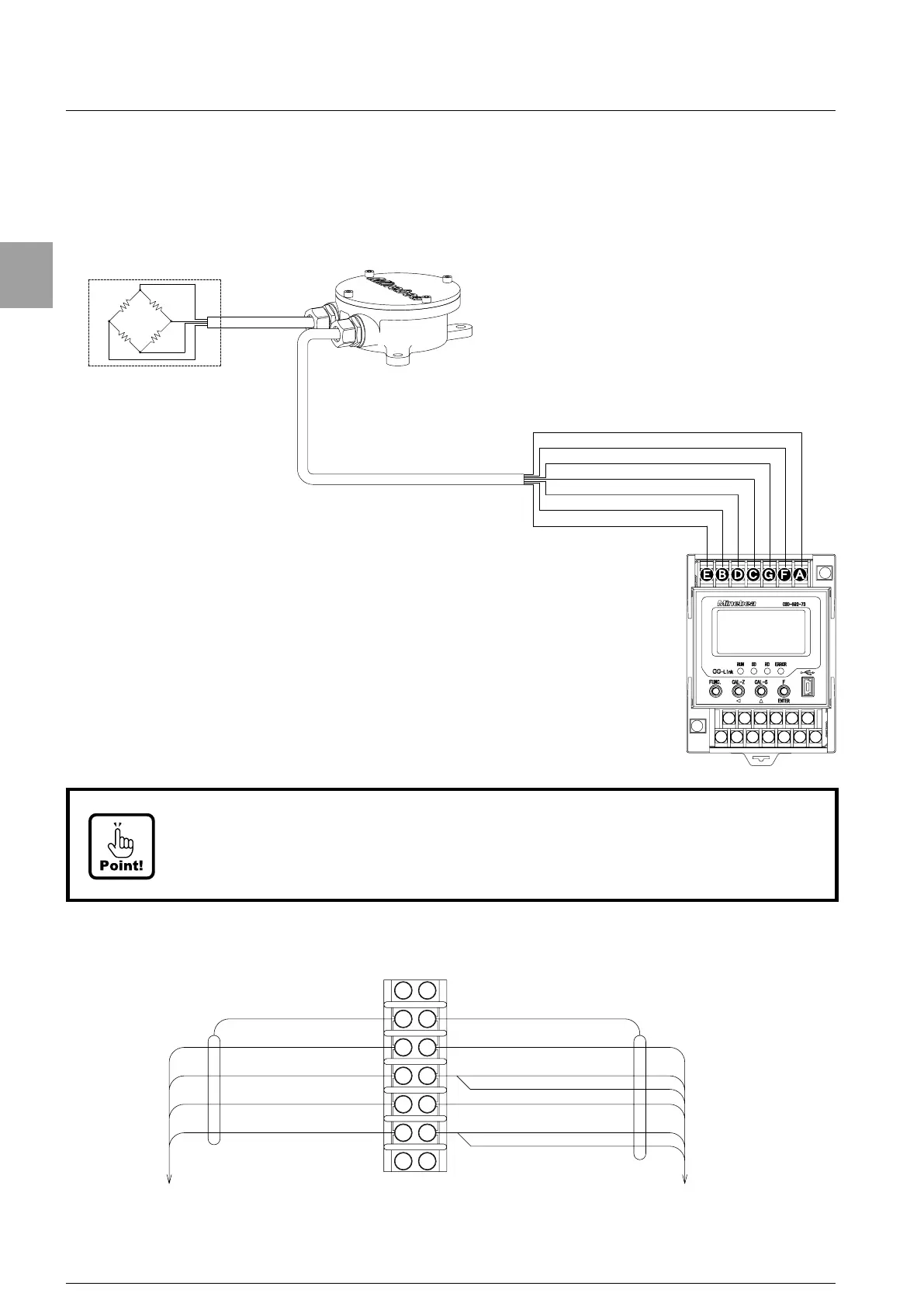

④ Connecting with load cell, junction box B-304B for extension, and CSD-892-73.
(1) When you use CAB-501 (6-cores cable)
B-304B internal terminal connection chart.
B-304B
CAB-501
Junction box
Load cell power supply + (Red)
Load cell power supply - (White)
Load cell input + (Green)
Load cell input - (Blue)
Shield (Yellow)
Sensing input + (Orange)
Sensing input - (Black)
Load cell
to load cell
Load cell power supply + (Red)
Load cell power supply - (White)
Load cell input + (Green)
Load cell input - (Blue)
Shield (Yellow)
Sensing input + (Orange)
Sensing input - (Black)
Shield (Yellow)
Load cell input + (Green)
Load cell power supply - (White)
Load cell power supply + (Red)
Load cell input - (Blue)
to CSD-892-73
• The remote sensing function of the instrument does not function enough due to
the resistance of the cable at the time of total 100 m or more in length of CAB-
501 (Minebea's standard cable), and there may have the possibility of outside the
accuracy guarantee.
