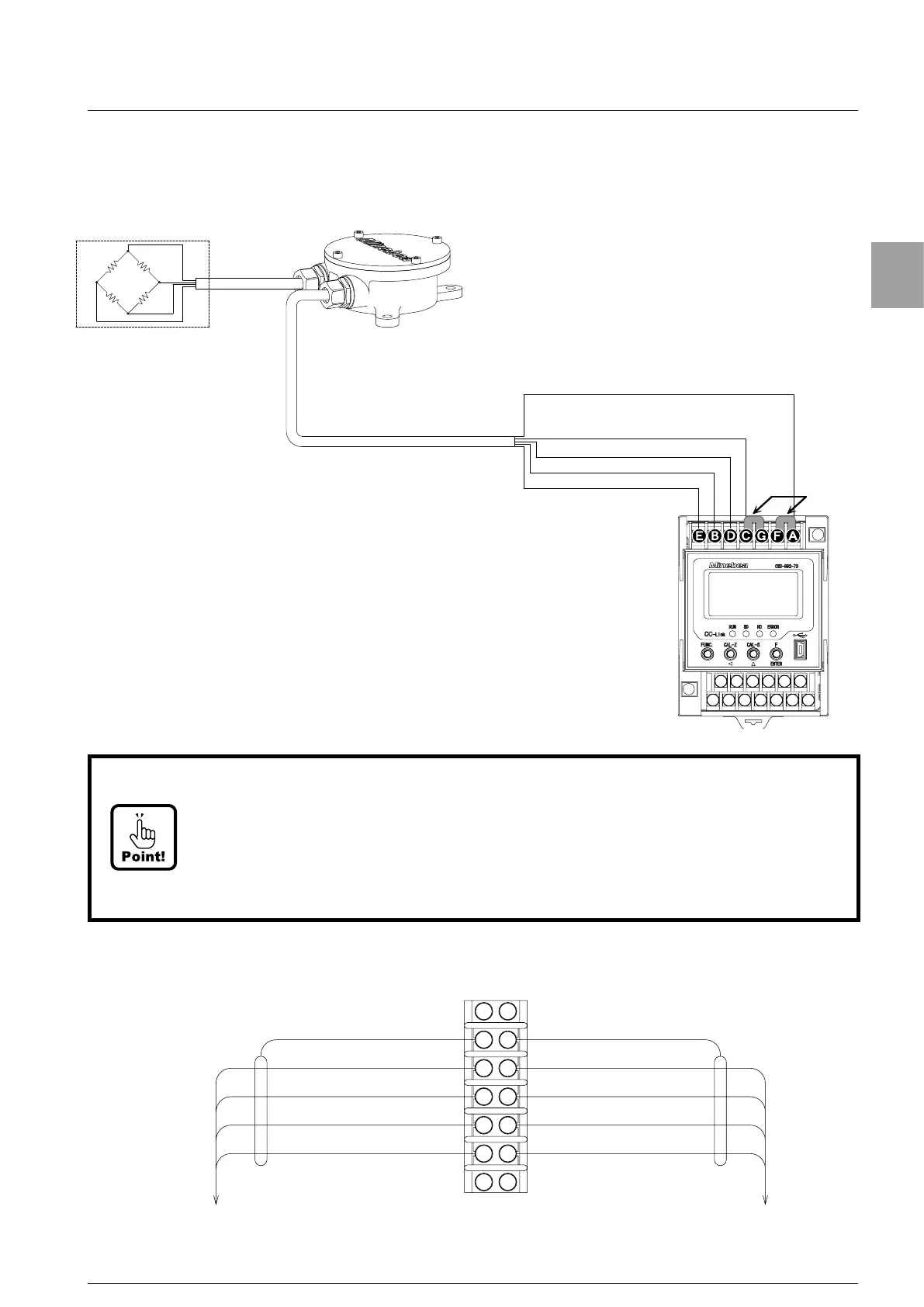

Installation & Wiring
(2) When you use CAB-502 (4-cores cable)
B-304B internal terminal connection
B-304B
CAB-502
Junction box
Load cell power supply + (Red)
Load cell power supply - (White)
Load cell input + (Green)
Load cell input - (Blue)
Shield (Yellow)
Short-bar attached
Load cell
to load cell
Load cell power supply + (Red)
Load cell power supply - (White)
Load cell input + (Green)
Load cell input - (Blue)
Shield (Yellow)Shield (Yellow)
Load cell input + (Green)
Load cell power supply - (White)
Load cell power supply + (Red)
Load cell input - (Blue)
to CSD-892-73
• When you use with 4-wires method, be sure to make a short-circuited between A-F
and C-G of the load cell terminal board. When terminal F and terminal G are used
with opening status, CSD-892-73 cannot make normal operation.
• When the length of CAB-502 (Minebea's standard cable) is more than 30 m totally,
the accuracy may be out of warranty due to the resistance of cable, the input
voltage of the
instrument will be decreased.
