FINAL - PRELIMINARY2
FULL FLOW
MEDIUM FLOW
DRIBBLE FLOW
STABLE
OVER
OK
UNDER
TARE
0
Changeable to simple comparison.
TIME
FINAL - PRELIMINARY1
FINAL - FREE FALL
FINAL

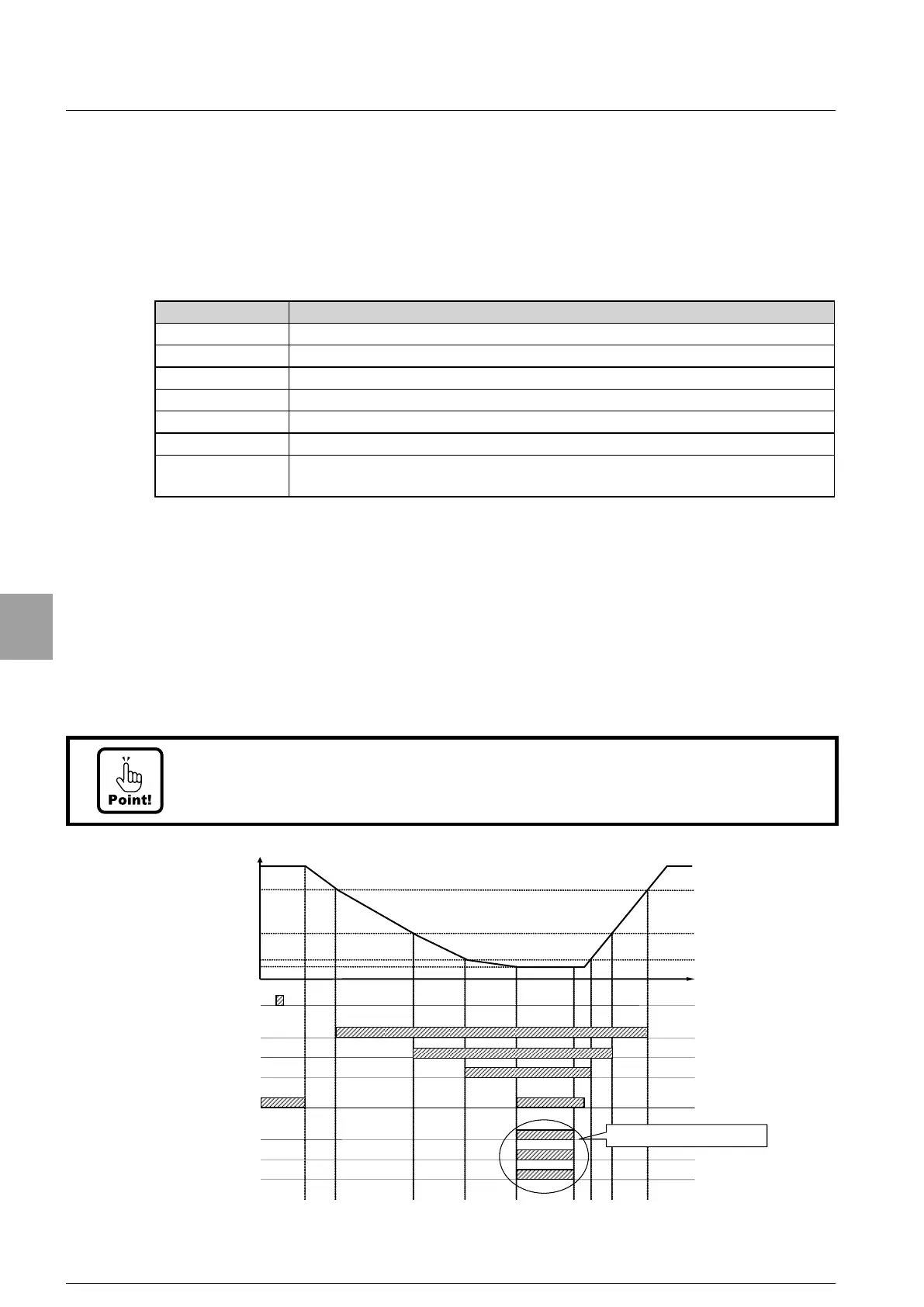

11-2-4. Simple comparison discharge mode
Simple comparison discharge mode is a mode output when the judgement condition that
compares a decreasing amount in discharging a measurement material and a value to
execute the setting is satisfied.
The set value : [1] (Discharge mode) is selected by the setting of S function SF-02.
Judgement condition
Condition display Judgement condition
NEAR ZERO | GROSS value (or NET value) | <= NEAR ZERO (SET 7)
FULL FLOW - NET value >= [FINAL (SET1) - PRELIMINARY2 (SET4)]
MEDIUM FLOW - NET value >= [FINAL (SET1) - PRELIMINARY1 (SET3)]
DRIBBLE FLOW - NET value >= [FINAL (SET1) - FREE FALL (SET2)]
UNDER - NET value < [FINAL (SET1) - UNDER (SET6)]
OVER - NET value > [FINAL (SET1) - OVER (SET5)]
OK
[FINAL(SET1)-UNDER(SET6)]<
=-NET VALUE
<=[FINAL (SET1)+OVER(SET5)]
Explanation of operation
(1) FULL FLOW turns ON when - NET value becomes (FINAL - PRERIMINARY2)
(2) MEDIUM FLOW turns ON when - NET value becomes (FINAL - PRERIMINARY1)
(3) DRIBBLE FLOW turns ON when - NET value becomes (FINAL - FREE FALL)
• The comparison target of NEAR ZERO and FULL is selectable
from [GROSS value] or
[NET value].
• UNDER, OVER, and OK operate by the NET value. The comparison operation can
be changed to a simple comparison.・FULL FLOW becomes OFF when the setting
of PRELIMINARY2 is [0], and MEDIUM FLOW becomes OFF when the setting of
PRELIMINARY1 is [0].
• The update of output for each condition display synchronizes with A/D sampling
rate or the display. This selection is executed by C function CF-04 (Comparative
operation display synchronizing).
