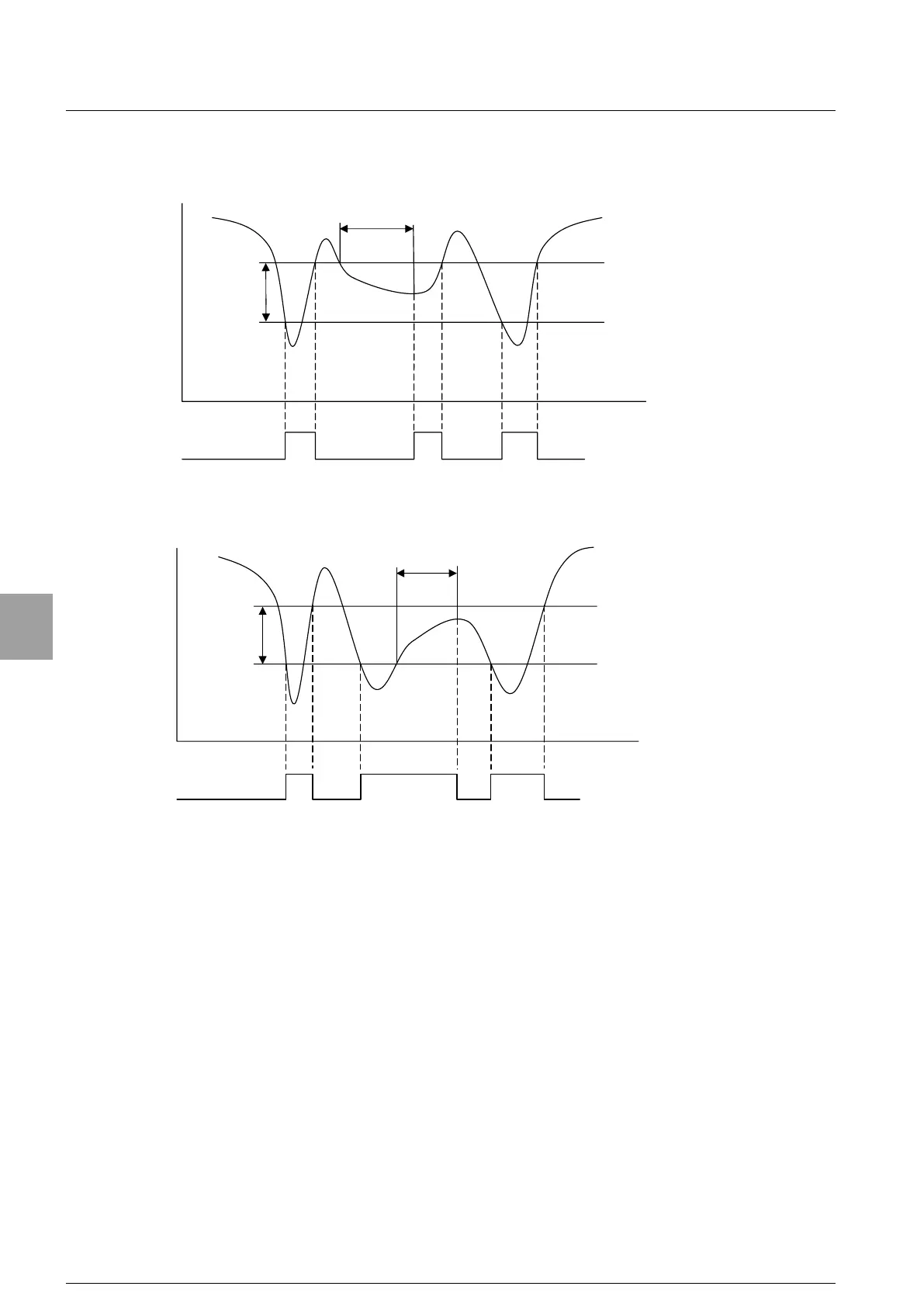

(3) When the operation of [Less than set value] with S0 is selected, and an effective direction
of hysteresis is set to [ON delay].
Ќ
Ѝ
Display
S0 output ON
S0 output OFF
Hysteresis
data width
Hysteresis time width
S0 set value
Time
(4) When the operation of [Less than set value] with S0 is selected, and an effective direction
of hysteresis is set to [OFF delay].
Ќ
Ѝ
Display
S0 output ON
S0 output OFF
Hysteresis
data width
Hysteresis time width
S0 set value
Time
72
Setting of Comparator
