ONLINE MODULE CHANGE
7.3 Online Module Change Procedure
7.3.3 When user range setting is used and initial setting was made with GX Configurator-AD (other system
7 - 18
1
OVERVIEW
2
SYSTEM CONFIGURATION
3
SPECIFICATIONS
4
SETUP AND PROCEDURES BEFORE OPERATION
5
UTILITY PACKAGE (GX CONFIGURATOR- AD)
6
PROGRAMMING
7
ONLINE MODULE CHANGE
8
TROUBLESHOOTING

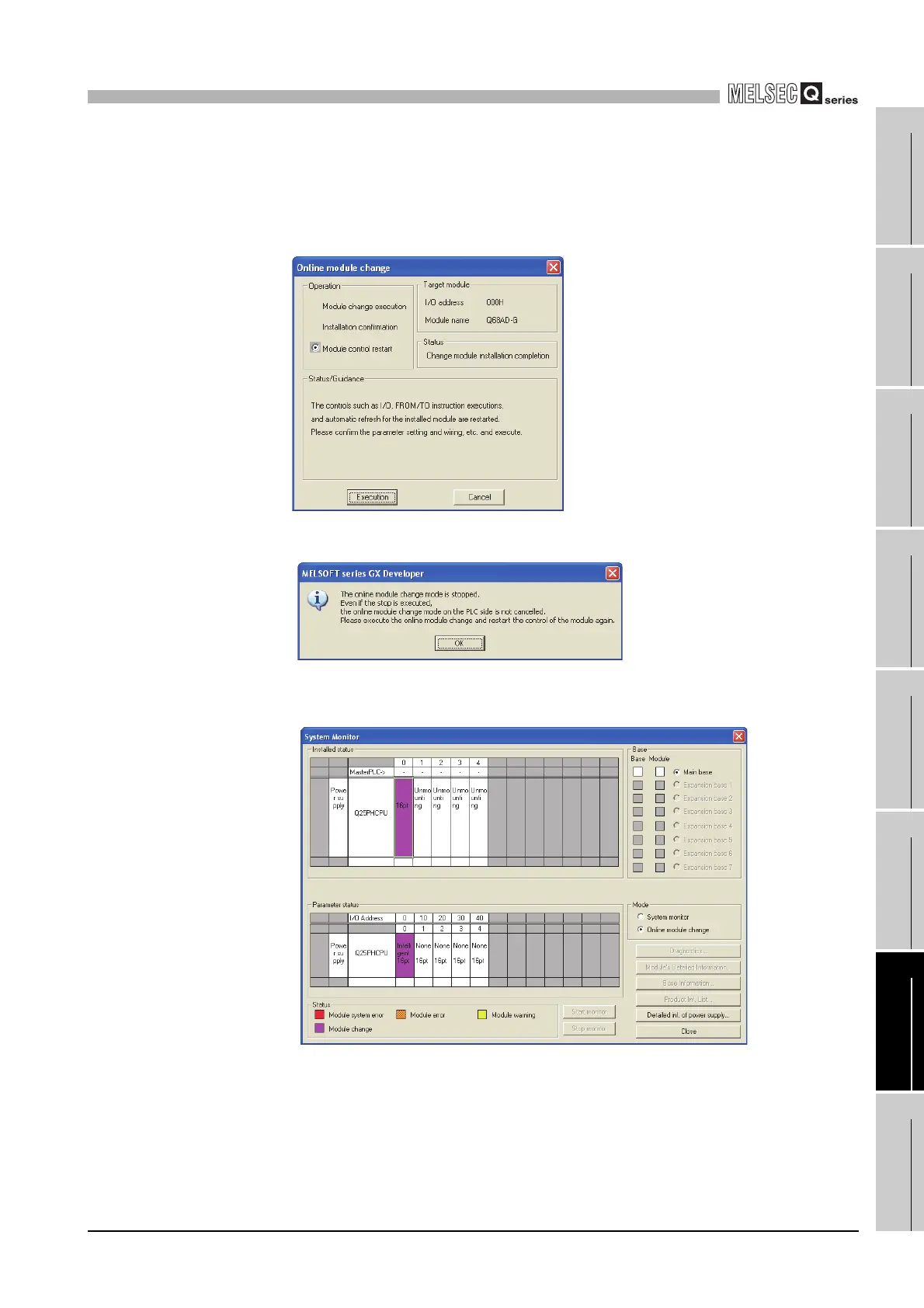

(4) Operation check
(a) To make an operation check, click the [Cancel] button to cancel control
resumption.
(b) Click the [OK] button to leave the "Online module change" mode.
(c) Click the [Close] button to close the System monitor window.
