68
WT07627X03
(1) In the [IP address] field, enter the IP address of the AE-200/AE-50/EW-50 that uses one of the following.
- Built-in Pulse Input (PI)
- PI controller (PAC-YG60MCA)
- External contact input (Refer to (E) “When the Peak Cut method [External Contact point input] is selected”
for details.)
Note: As the control level is obtained every minute from the AE-200/AE-50/EW-50 that uses a built-in Pulse Input (PI) or a PI
controller (PAC-YG60MCA), the control will be late for up to one minute on the AE-200/AE-50 whose Peak Cut method
setting is [Remote AE].
Note: Up to three AE-200/AE-50/EW-50 units can be connected to the AE-200/AE-50/EW-50 unit that uses a built-in Pulse
Input (PI) or a PI controller (PAC-YG60MCA). When five or more AE-200/AE-50/EW-50 units are connected, add the
settings explained in (C) “When the Peak Cut method [PI Controller] is selected” or use the Peak Cut method [Electric
Amount Count Software].
(2) In the [Temperature difference between set point and inlet] section, a temperature differential can be set to
between 3 and 9 as necessary. The Peak Cut control setting that corresponds to the control level 0 will be
disregarded for the indoor unit groups in which the temperature difference between the set temperature and
the room temperature is greater than the specified temperature differential.
Note: The Peak Cut control setting that corresponds to the control levels 1 to 4 will be effective regardless of the temperature
differential setting.

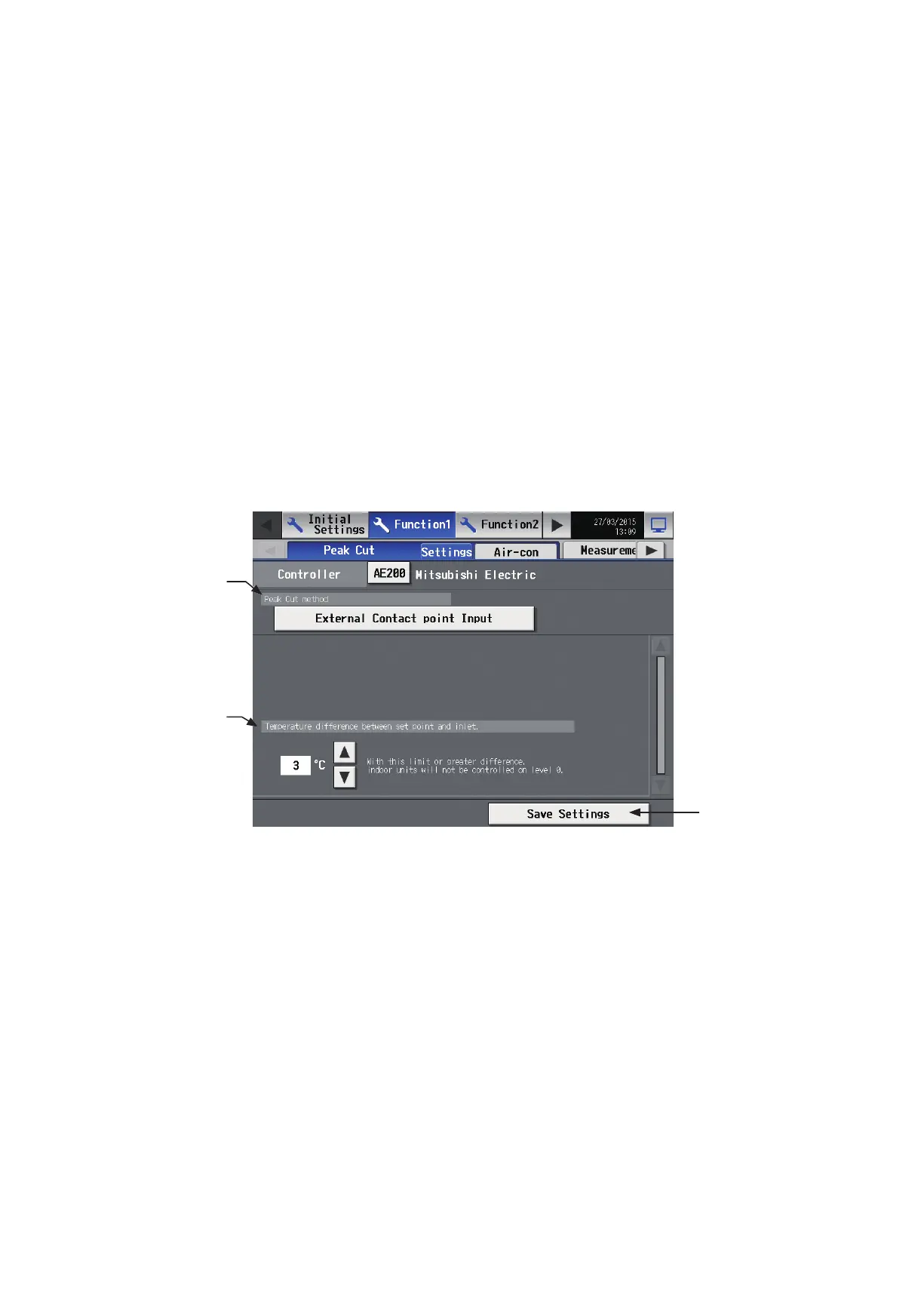

(E) When the Peak Cut method [External Contact point input] is selected
Note: The external signal can be input to AE-200, AE-50, and EW-50, so that all outdoor units and blocks of indoor units can be
selected.
(1) In the [Temperature difference between set point and inlet] section, a temperature differential can be set to
between 3 and 9 as necessary. The Peak Cut control setting that corresponds to the control level 0 will be
disregarded for the indoor unit groups in which the temperature difference between the set temperature and
the room temperature is greater than the specified temperature differential.
Note: The Peak Cut control setting that corresponds to the control levels 1 to 4 will be effective regardless of the temperature
differential setting.
Peak Cut method
Temperature difference
between set point and
inlet
Save Settings
To Next Page
