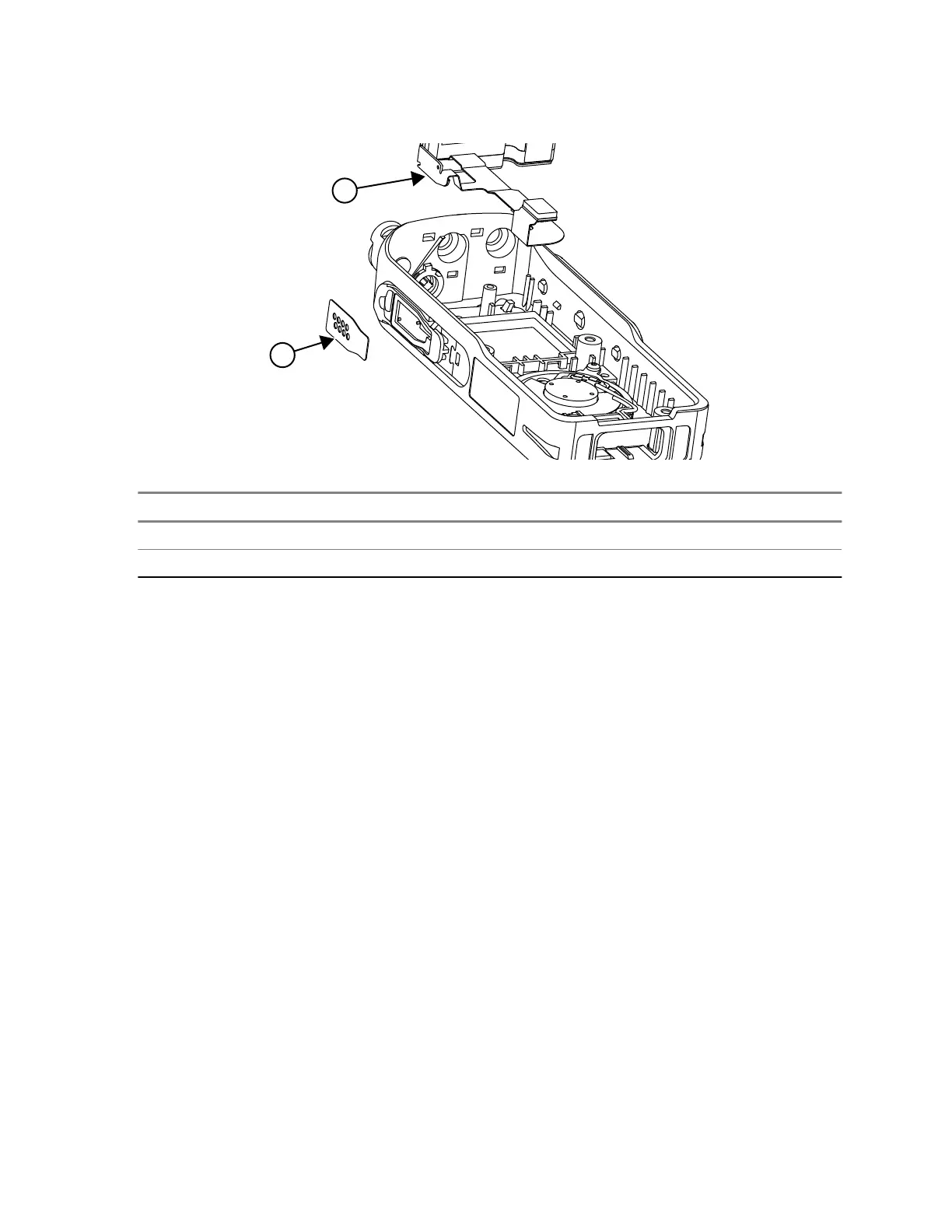

Figure 31: UC Escutcheon Removal
1
2
No. Description
1 UC flex
2 UC Escutcheon
5.10.1.11
Removing the Speaker Assembly
Prerequisites: Recommended tools:
● 6IP Torx-Plus bit
● Torx Driver
Procedure:
1. Using the Torx driver with the 6IP Torx-Plus bit, unscrew the single speaker retainer screw fastening
the speaker retainer to the front housing with a torque of 2.5±0.1 in-lb (0.28±0.011 Nm).
2. Lift up the speaker retainer. Be careful not to damage the speaker connector wires.
3. Remove the speaker assembly from the front housing assembly.
68015000841-EL
Chapter 5: Maintenance
104
