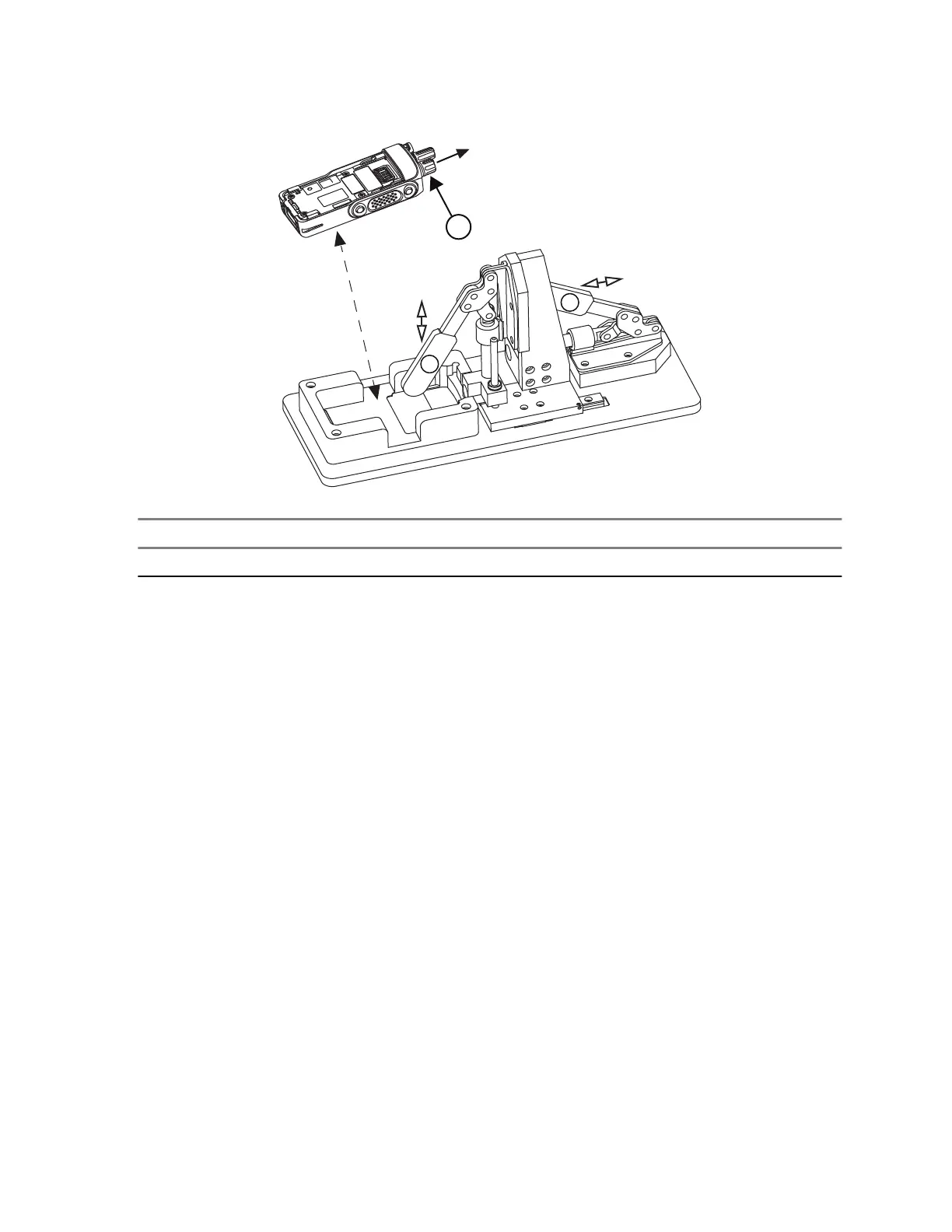

Motorola solutions MTP3100 - Removing the Back Cover; Figure 22: Volume Knob Removal Using Fixture

Figure 22: Volume Knob Removal Using Fixture
1
2
3
No. Description
3 Volume Knob
5.10.1.4
Removing the Back Cover
Prerequisites: Recommended tools: Black Stick or flat-tip screwdriver.
Procedure:
1. Insert the Black Stick or flat-tip screwdriver carefully into the small slot in between the Back Cover and
the Back Chassis.
2. Lift up the Back Cover slightly using the Black Stick/flat-tip screwdriver with one hand and slide the
Back Cover downwards at the same time with the other hand.
