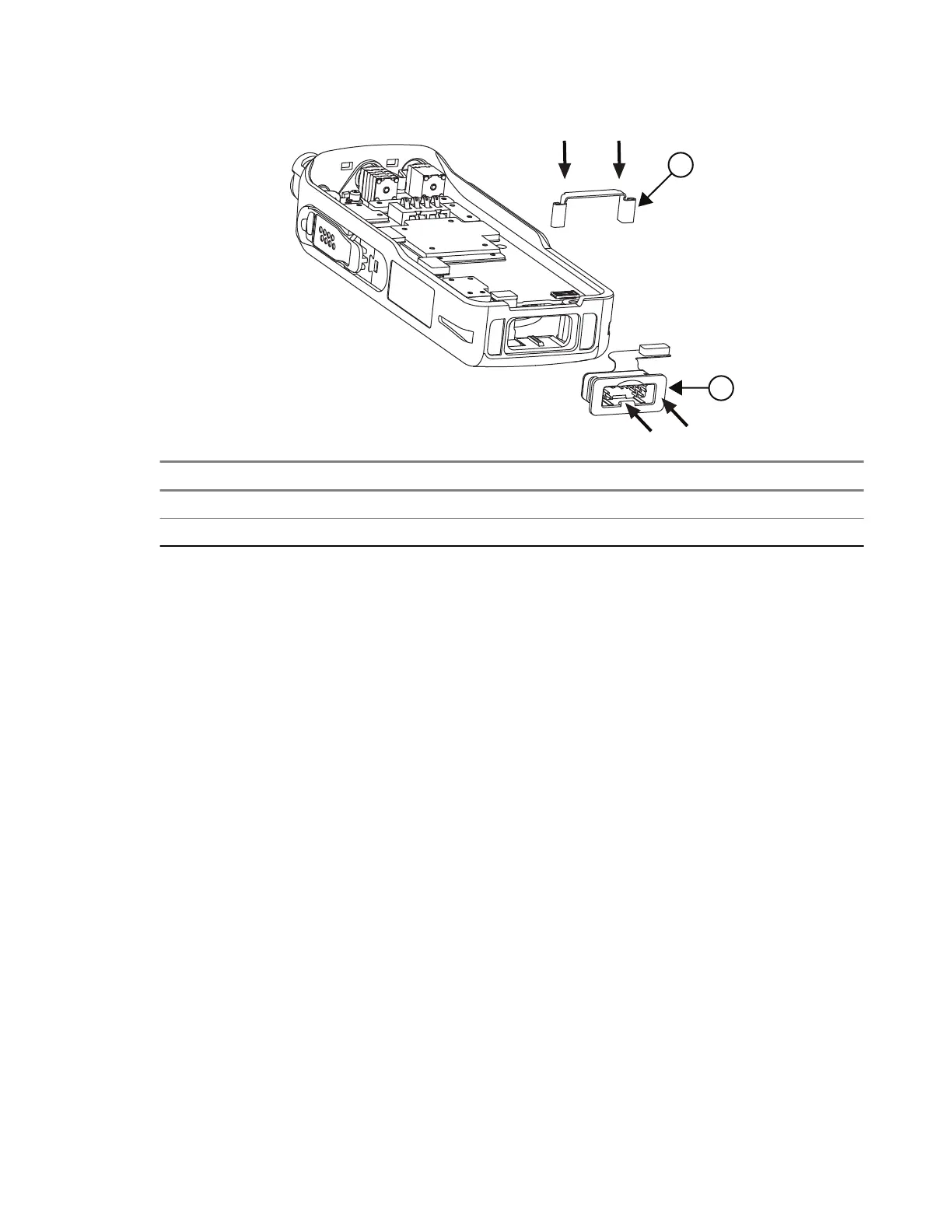

Figure 40: Bottom Connector Installation
No. Description
1 Retainer
2 Bottom Connector
5.10.2.6
Installing the Main Board
Prerequisites: Recommended tools:
● 6IP Torx-Plus Bit
● Torx Driver
Procedure:
1. Connect the speaker assembly connector to the main board, then place the main board in position on
the front housing assembly.
2. Gently place the main board into position on the assembly, making sure that the volume and
frequency metal stubs are pushed through their respective gaps on the front housing assembly and all
flex connectors are not damaged.
3. Make sure the PCB slot at the bottom portion of the Main Board is aligned with the front housing guide
hole on the bottom-right corner.
68015000841-EL
Chapter 5: Maintenance
113
