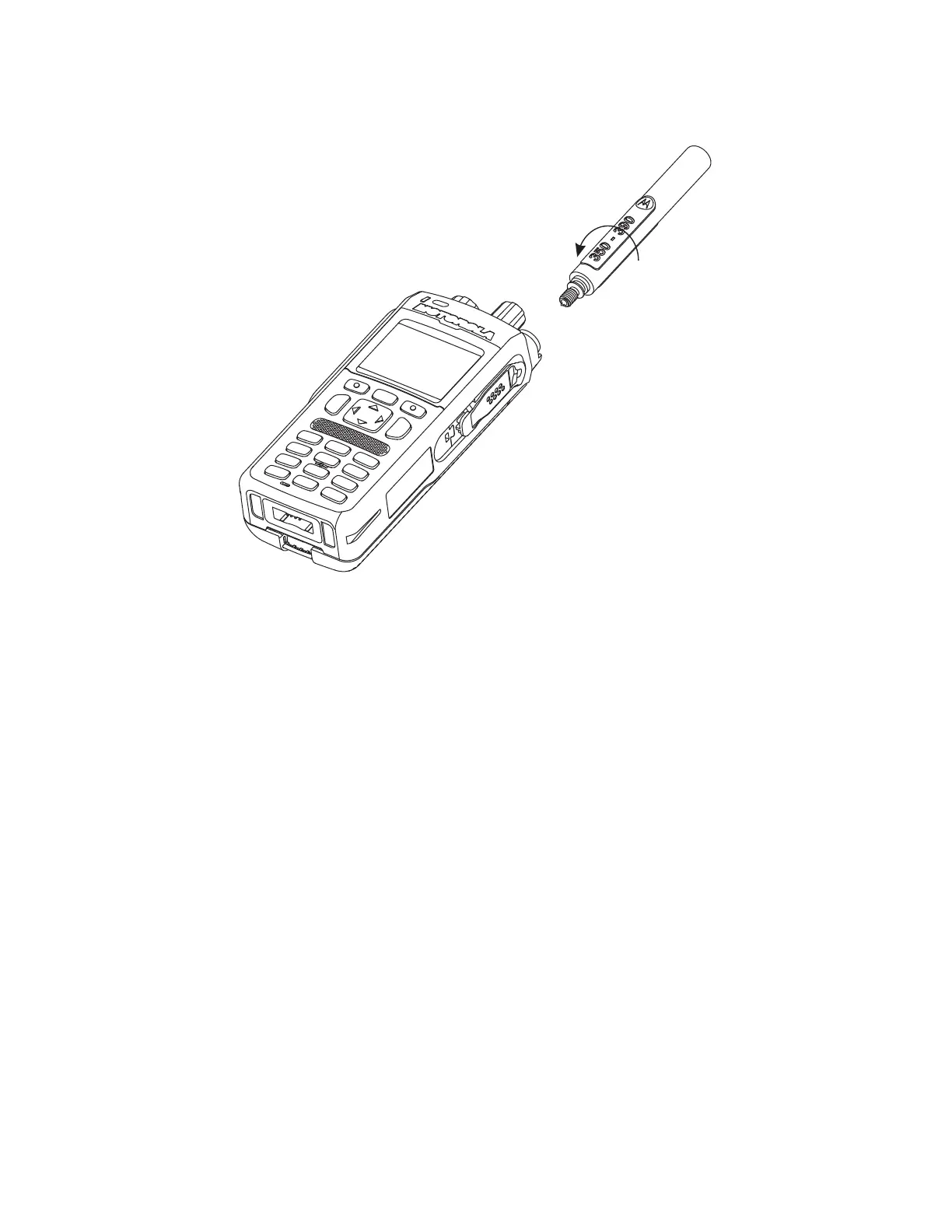

Figure 18: Removing the Antenna
5.10.1.2
Removing the Battery
Procedure:
1. Place the unit facing down on the work area.
2. Press the battery release button, slide the battery downwards away from the unit and remove the
battery from the unit.
68015000841-EL
Chapter 5: Maintenance
92
