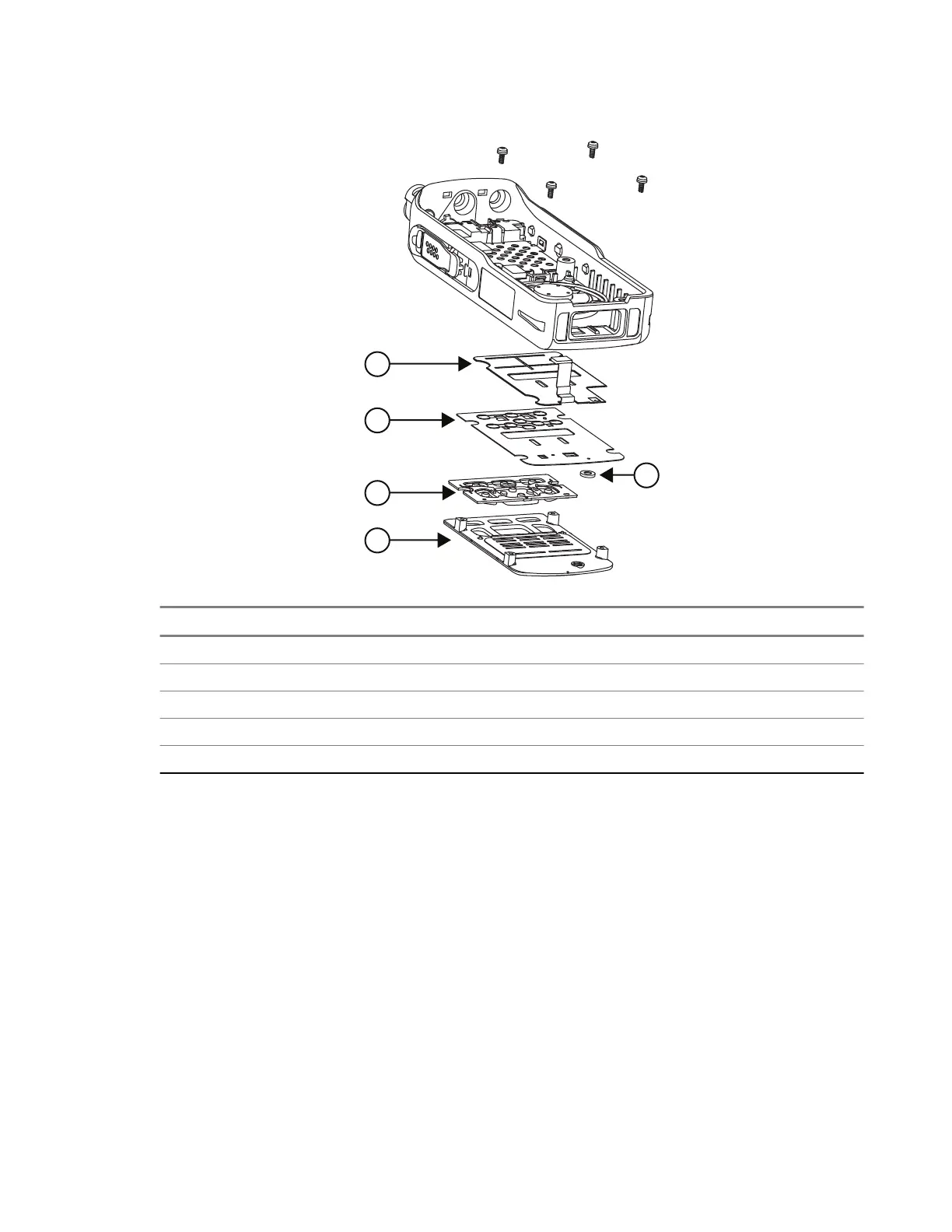

Figure 34: Keypad Removal LKP Keypad
1
2
3
5
4
No. Description
1 LKP keypad flex assembly
2 Mylar dome
3 Main keypad (LKP)
4 Keypad bezel (LKP)
5 Membrane, Bottom Mic
5.10.2
Reassembling the Radio
Only Motorola Solutions Service Centers or Authorized Motorola Solutions Service Dealers can disassemble
the radio for repair or maintenance.
5.10.2.1
Installing the Keypad
Prerequisites: Recommended tools:
● 6IP Torx-Plus Bit
● Torx Driver
Procedure:
1. Push the main keypad into the keypad bezel. Make sure that the main keypad is pressed firmly on the
three ribs marked on the keypad bezel.
68015000841-EL
Chapter 5: Maintenance
107
