Motorola solutions MTP3100 - Figure 52: Initial Pressure for Hand Pump Vacuum Leak Test at 6.5 Inhg; Figure 53: Initial Pressure and Maximum Allowable Pressure Drop

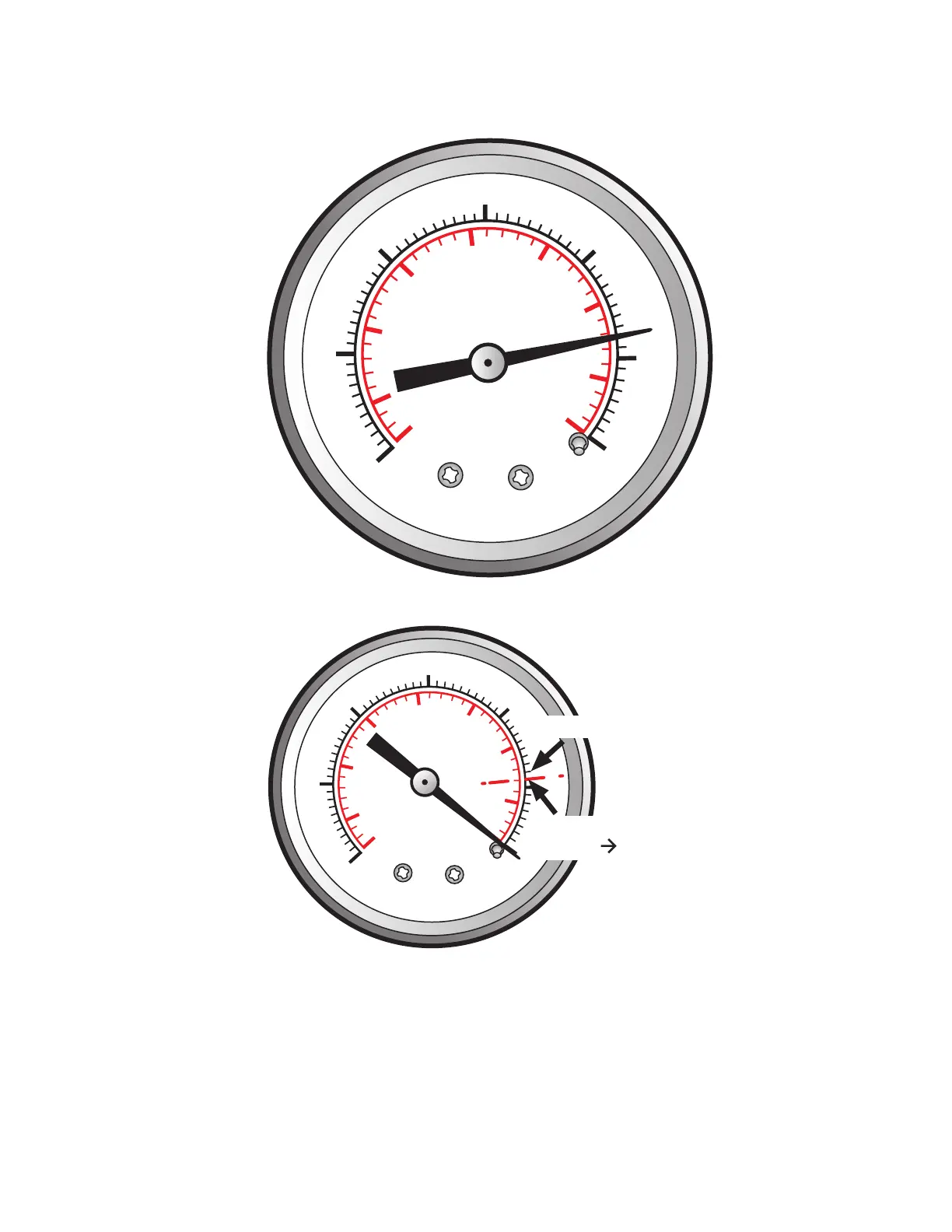

Figure 52: Initial Pressure for Hand Pump Vacuum Leak Test at 6.5 inHg
760
30
25
20
15
10
5
0
0
mmHg
vac
InHg
vac
100
200
300
400
500
600
700
Figure 53: Initial Pressure and Maximum Allowable Pressure Drop
760
30
25
20
15
10
5
0
0
mmHg
vac
InHg
vac
100
200
300
400
500
600
700
Initial Pressure 6.0 inHg
Pressure drop below
5.5 inHg Fail leak test
7. Dry the water from the membrane after the leak test that protects the Seal Port to allow the radio
pressure to equalize.
8. Remove the hand pump hose and connector from the radio.
68015000841-EL
Chapter 5: Maintenance
124
