Motorola solutions MTP3100 - Figure 33: Keypad Removal FKP Keypad

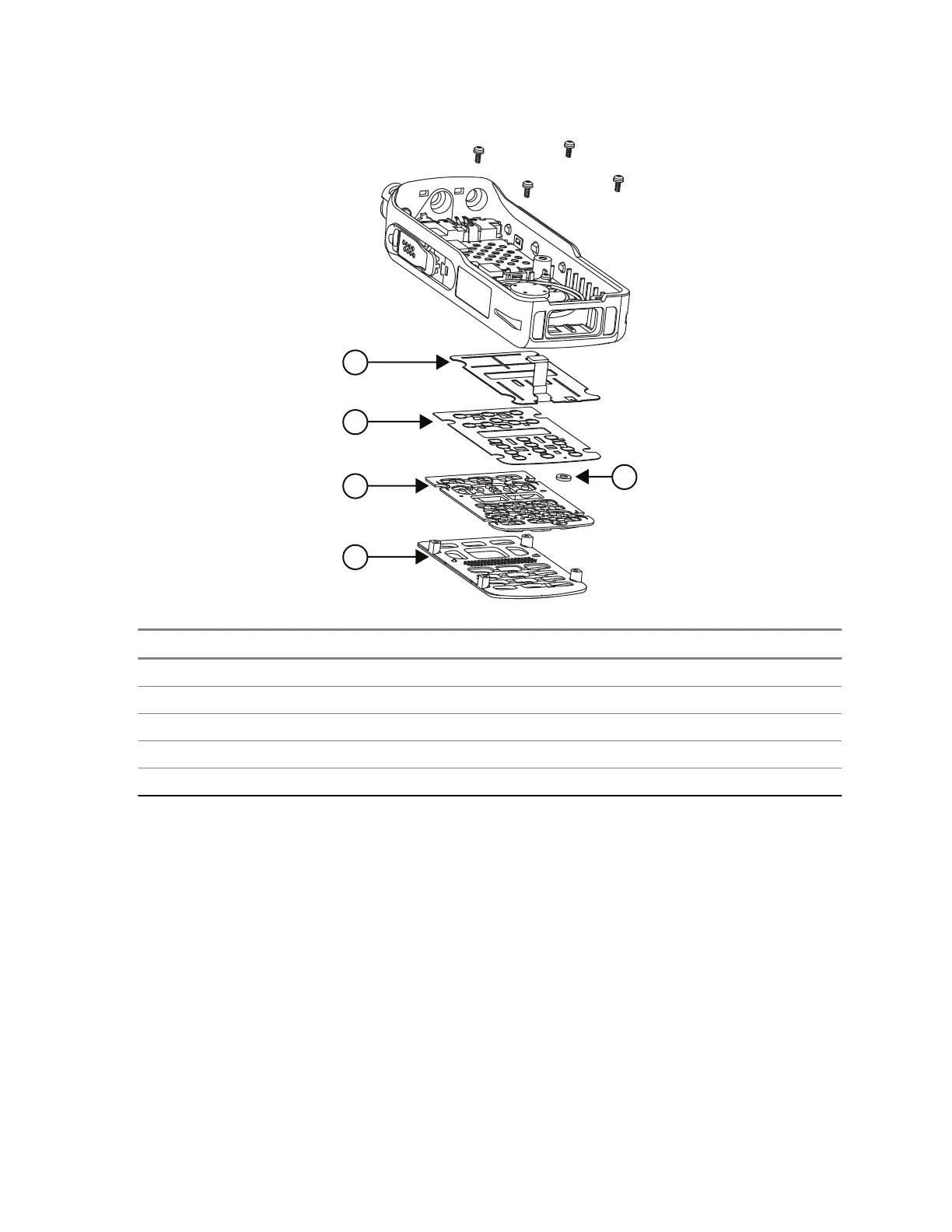

Figure 33: Keypad Removal FKP Keypad
1
2
3
5
4
No. Description
1 FKP keypad flex assembly
2 Mylar dome
3 Main keypad (FKP)
4 Keypad bezel (FKP)
5 Membrane, Bottom Mic
68015000841-EL
