Motorola solutions MTP3100 User Manual

4.2.1
Assembling Procedures for Alternative Test Setup
When and where to use:
NOTE: The RF Antenna Adaptor is used for testing purposes only.
Procedure:
1. Align the RF plug to the chassis slot.

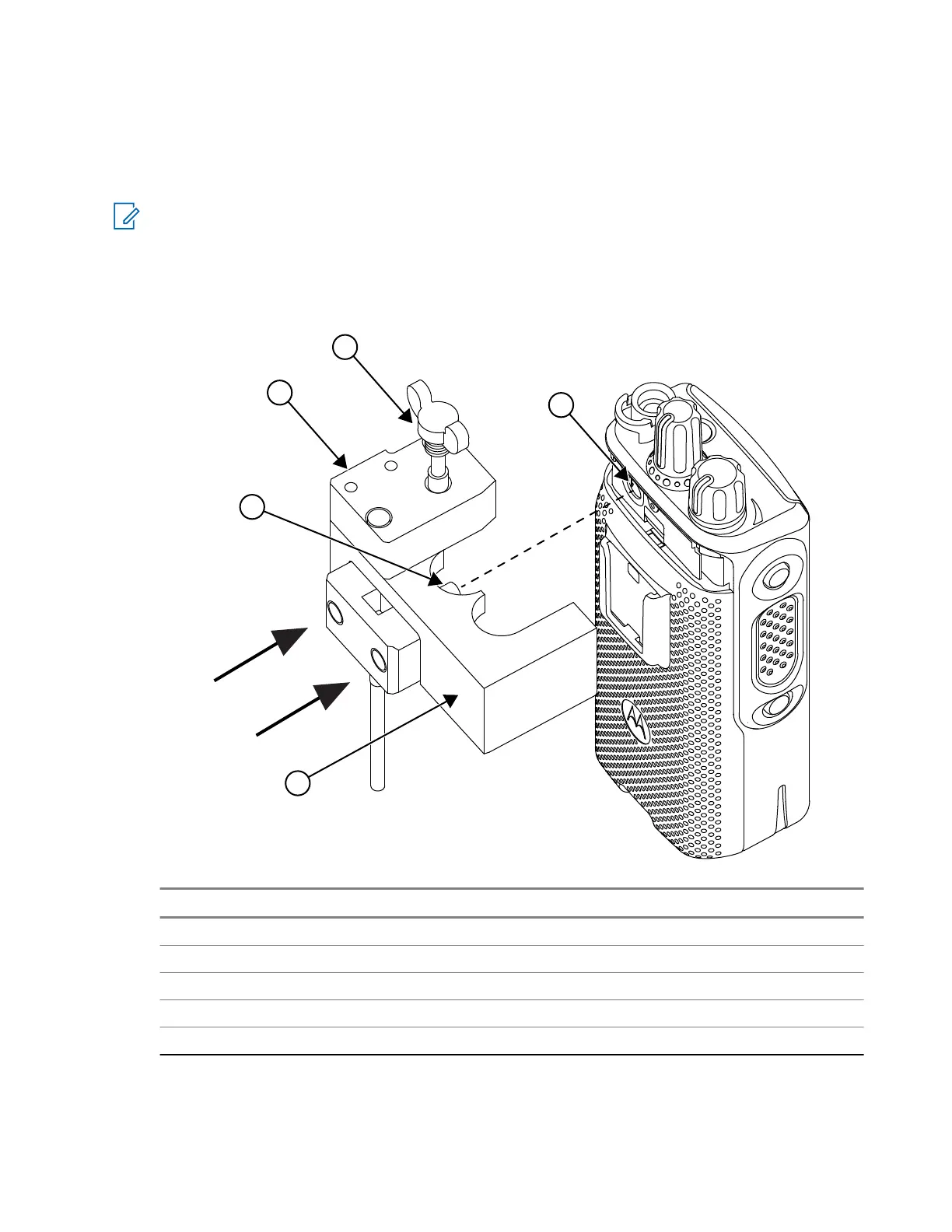

Figure 3: RF Antenna Adaptor – Insertion
5
1
2
3
4
Label Description
1 Wing screw
2 RF antenna adaptor plastic block
3 RF plug
4 RF Antenna Adaptor (PMLN5891_)
5 Chassis slot
2. Carefully insert the RF plug into the chassis slot on the radio. A slight friction will be felt when the RF
plug is mated to the RF switch located inside the chassis slot.
3. Gently push the RF plug deeper into the recess slot until it reaches the maximum level.
68015000841-EL
Chapter 4: Test Setup and Testing
41
