Installing the SIM Card Door
Prerequisites: Recommended tools:
● T-5 Torx bit
● Torx driver
Procedure:
1. Place the SIM card Door into position on the back chassis.
2. Place the SIM card holder onto the back chassis, including the single flathead screw.
3. Using the Torx driver with the T-5 Torx bit, screw the single screw fastening the SIM card holder to the
back chassis.
4. Using the Torx driver with the T-5 Torx bit, screw with a torque of
1.75±0.1 in-lb (0.2±0.011 Nm).

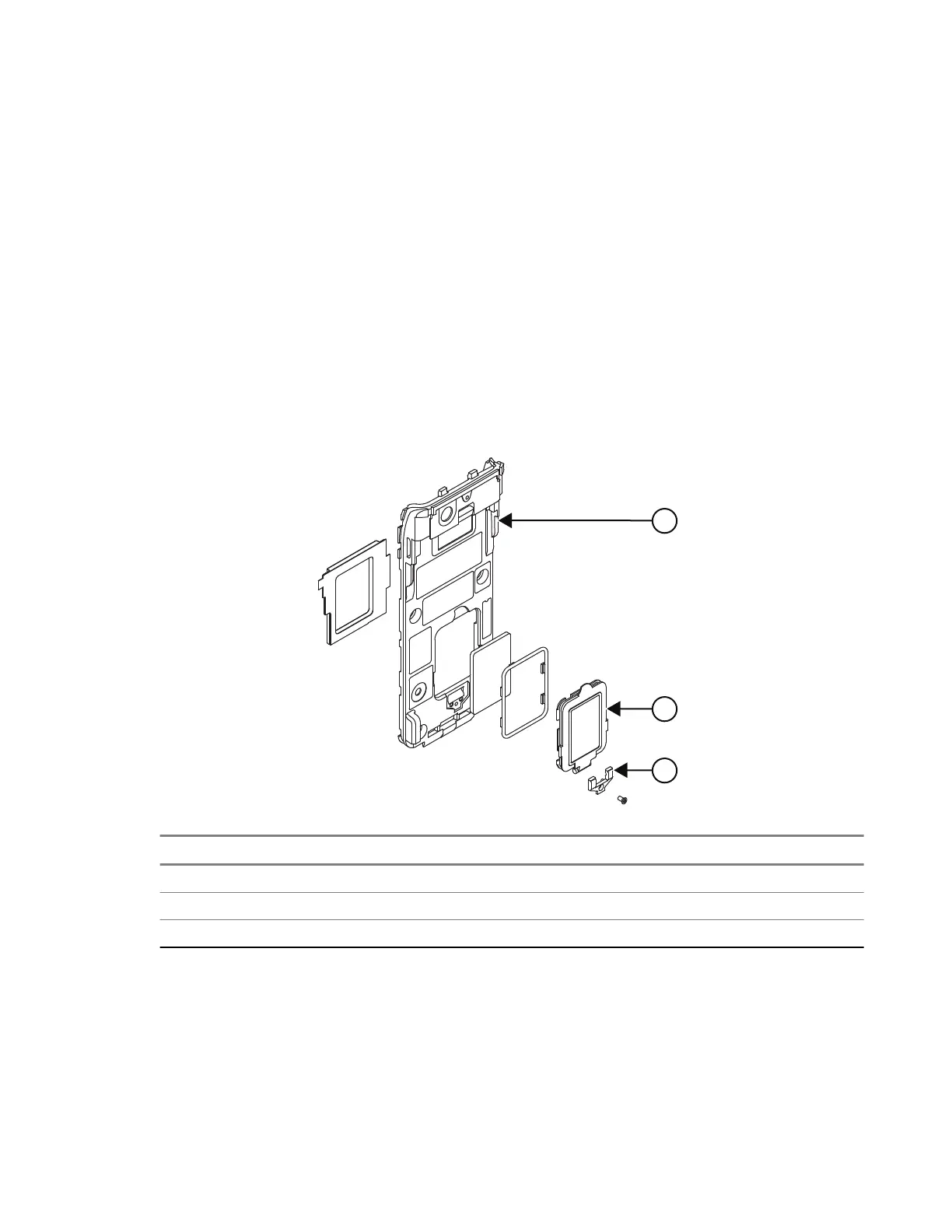

Figure 43: SIM Card Door Installation
1
2
3
No. Description
1 Back chassis
2 SIM card door
3 SIM card holder
5.10.2.8
Installing the Back Chassis
Prerequisites: Recommended tools:
● 8IP Torx-Plus bit
● Torx driver
68015000841-EL
Chapter 5: Maintenance
115
