4. The wing screw on the RF antenna adapter plastic block is now aligned with the antenna tower.

Tighten the wing screw by rotating clockwise until it touches the plastic block on the RF antenna

adapter.

4.2.2

Disassembling Procedures for Alternative Test Setup

Procedure:

1. Loosen the wing screw completely by rotating the screw counter clockwise. Ensure that the spring on

the wing screw is fully retracted from the adapter plastic block.

CAUTION: Failure to loosen the wing screw completely from the RF antenna adapter plastic

block while moving the block backwards will cause damage to the RF switch.

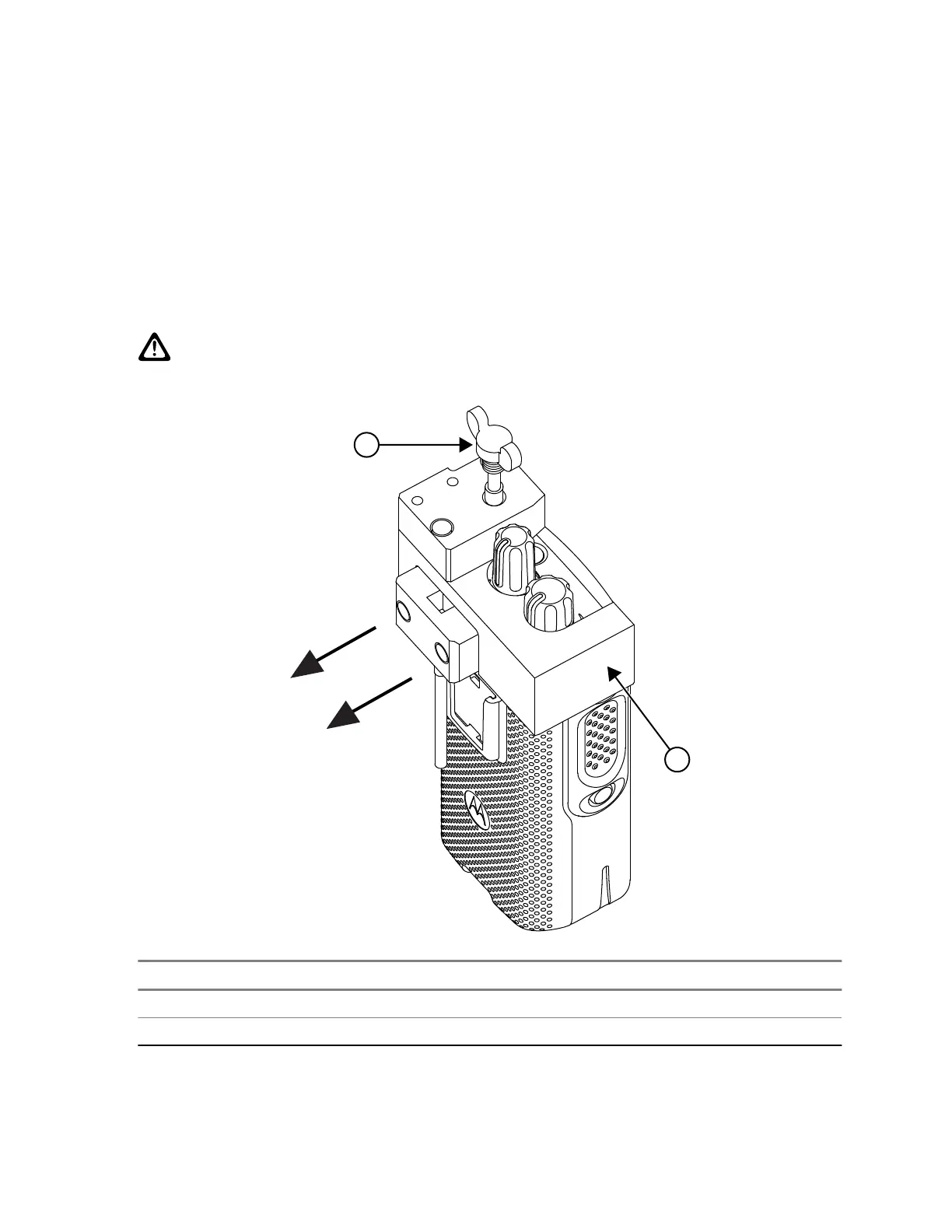

Figure 4: Antenna Adapter – Removal

Label Description

1 Wing screw

2 RF antenna adapter plastic block

2. Gently remove the RF antenna adapter block horizontally backwards. Be careful not to exert any side

force to the RF plug before it is fully removed from the chassis slot.
