– Max. Power-on Speed
Enter the maximum permitted start speed at which the MIC5 starts sending ignition pulses.
A value of 6000 rpm is set as the default value: The MIC5 can be activated at the starter
speed and immediately send ignition pulses.
For a value of 0 rpm the MIC5 can only start sending ignition pulses once it has registered
that the engine is at a standstill.

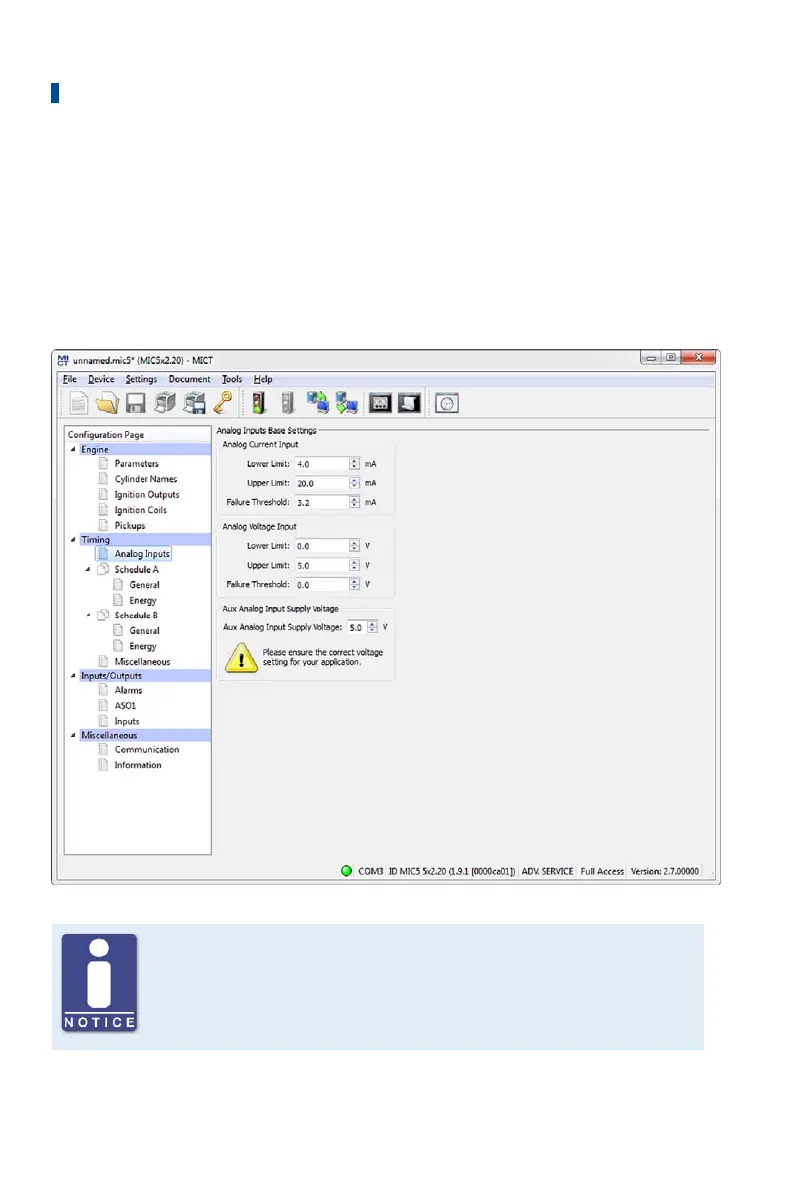

8.11.6 Timing – Analog Inputs
Auxiliary supply voltage
Check with the configuration of the analog inputs, that the set auxiliary
supply voltage corresponds to your application.
