4 Product Description
Rev. 03/2019 25

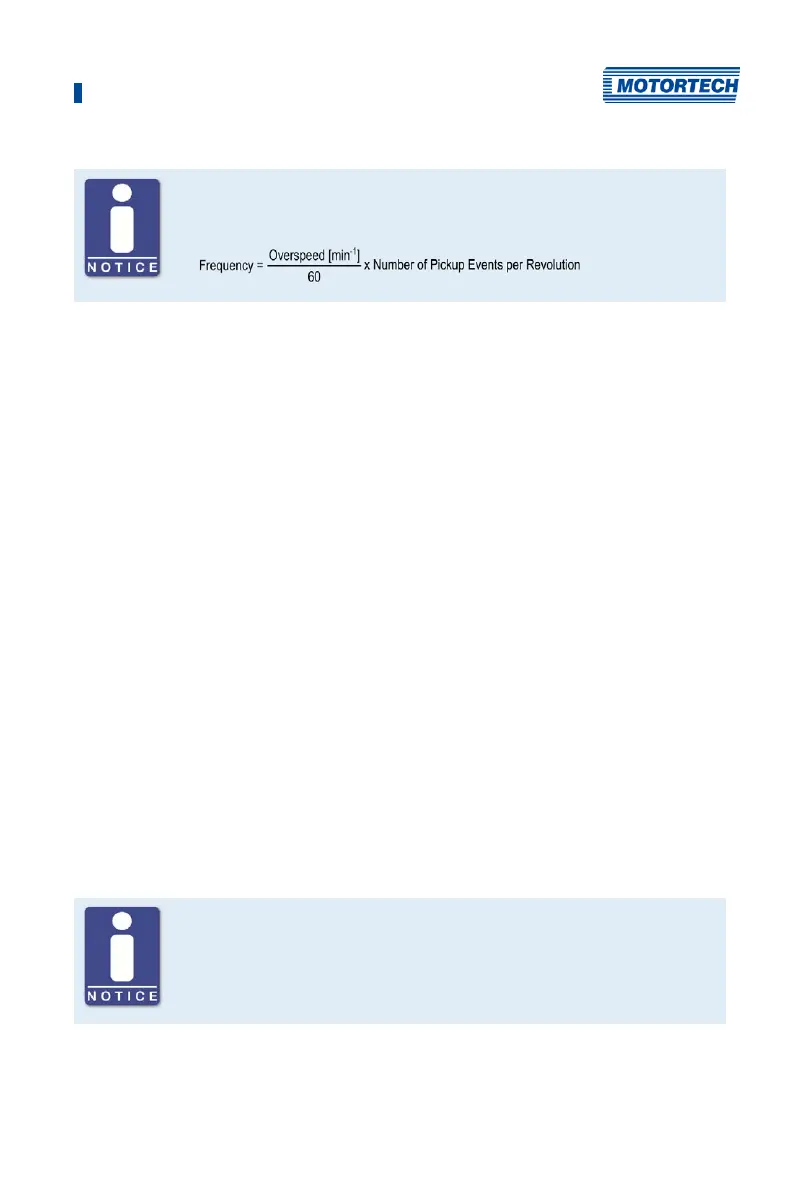

Frequency of the pickups
The frequency of the pickup is calculated as per the following formula.
4.1.6 Interfaces
Depending on the device version, the following interfaces are available:
USB Interface
– Compatible with USB 2.0
– The Connector B version is only suitable for temporary data exchange and not for a
permanent connection.
– Max. wire length 5 m (16.4')
CAN Bus Interface
– Classical Extended Frame Format (CAN 2.0B)
– As per ISO 11898 standard, 50 kbit/s to 1 Mbit/s
– Transient-proof (automotive classification)
– Max. 110 participants
– Max. wire length 250 m (820') depending on the transfer rate
RS485 Interface
– According to TIA-485-A (03/2003)
– Max. 32 participants
– Max. data transfer rate 9.6 kbit/s to 115.2 kbit/s
– Max. wire length 100 m (328') depending on the transfer rate
Pay attention to the wiring diagrams
Depending on the device version, certain signals or interfaces described in
these instructions may not be available. You are also always to pay
attention to the wiring diagrams enclosed with the input and output cable
harnesses.
