4.1.4 Product Identification – Labeling on the Device
The necessary numbers for unique product identification are on the device:
– Part number of the ignition controller (P/N)
– Arrangement number of the ignition controller (A/N)
– Serial number of the ignition controller (S/N)

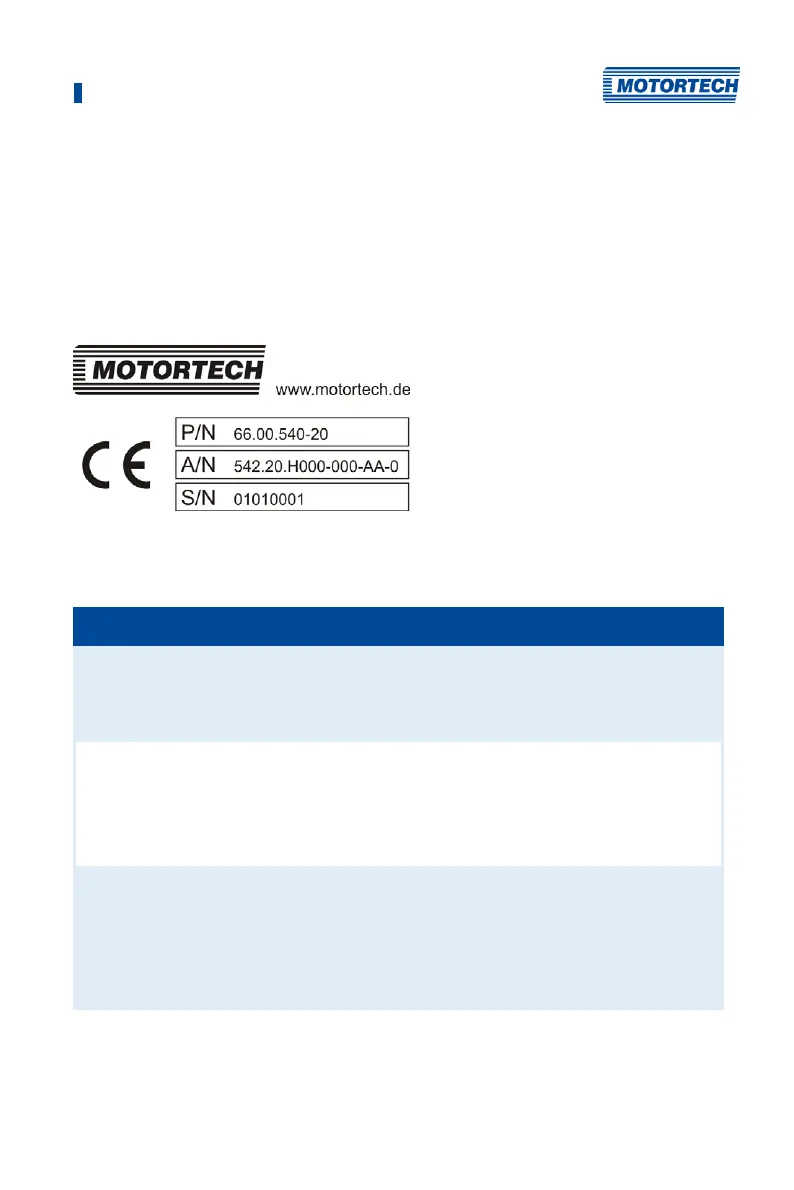

Example MIC5
4.1.5 Electrical Data
The MIC5 has the following electrical characteristics.
Feature Value
Power consumption MIC5:
max. 240 W at 24 V
MIC5-SE:
max. 88 W at 24 V
Power supply Nominal voltage: 24 V DC
MIC5:
Operating voltage: 16.8 V DC to 32 V DC
MIC5-SE:
Operating voltage: 10 V DC to 32 V DC
Required current MIC5:
current max. 14 A.
MIC5-SE:
current max. 7 A.
An estimation of the power requirements can be found after this
table.
