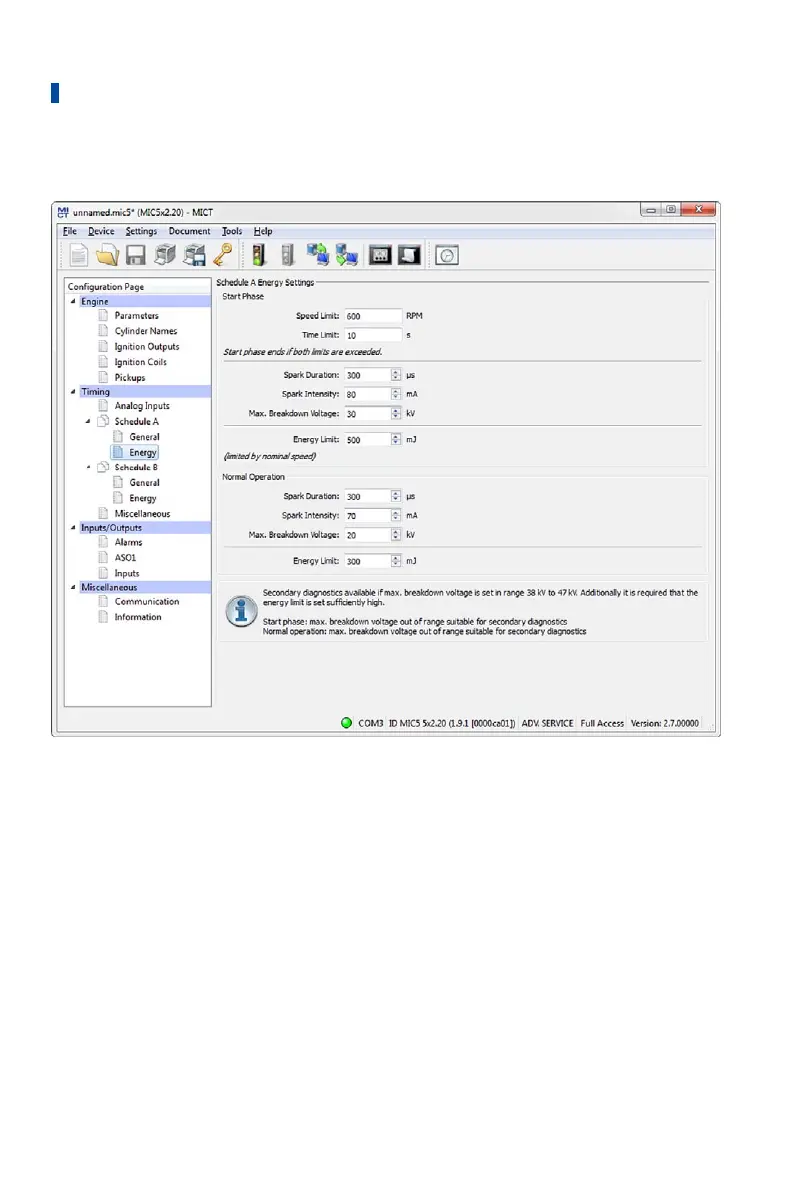

8.11.8 Timing – Schedule A/B – Energy
You can make different energy settings for the start phase and normal operation.
Start Phase
Set the start phase of your engine. To do this you can enter a Speed Limit, a Time Limit or both. If
you enter values for both criteria, both values must also be exceeded, so that the ignition
controller classifies the start phase as ended and sets the values for normal operation. If you
only want to use one criterion, set the other value to 0. If you do not want to define any start-up
phase, set both values to 0.
Enter values specific to your application for the Spark Duration, the Spark Intensity and the
Maximum Breakdown Voltage. The maximum breakdown voltage corresponds to the maximum
voltage expected during operation.
Normal Operation
If the criteria specified for the start phase are exceeded, the settings for normal operation are
used by the ignition controller. Make the energy settings the same as for the start phase.
