8 Settings via the MICT
120 Rev. 03/2019
– Column: Misfire
The red status display signals a current misfire at the respective output. With a yellow status
display at least one misfire has occurred at the respective output since the last reset of the
counter.
The coil data version configured in the MIC5 is displayed under the ignition runtime data.

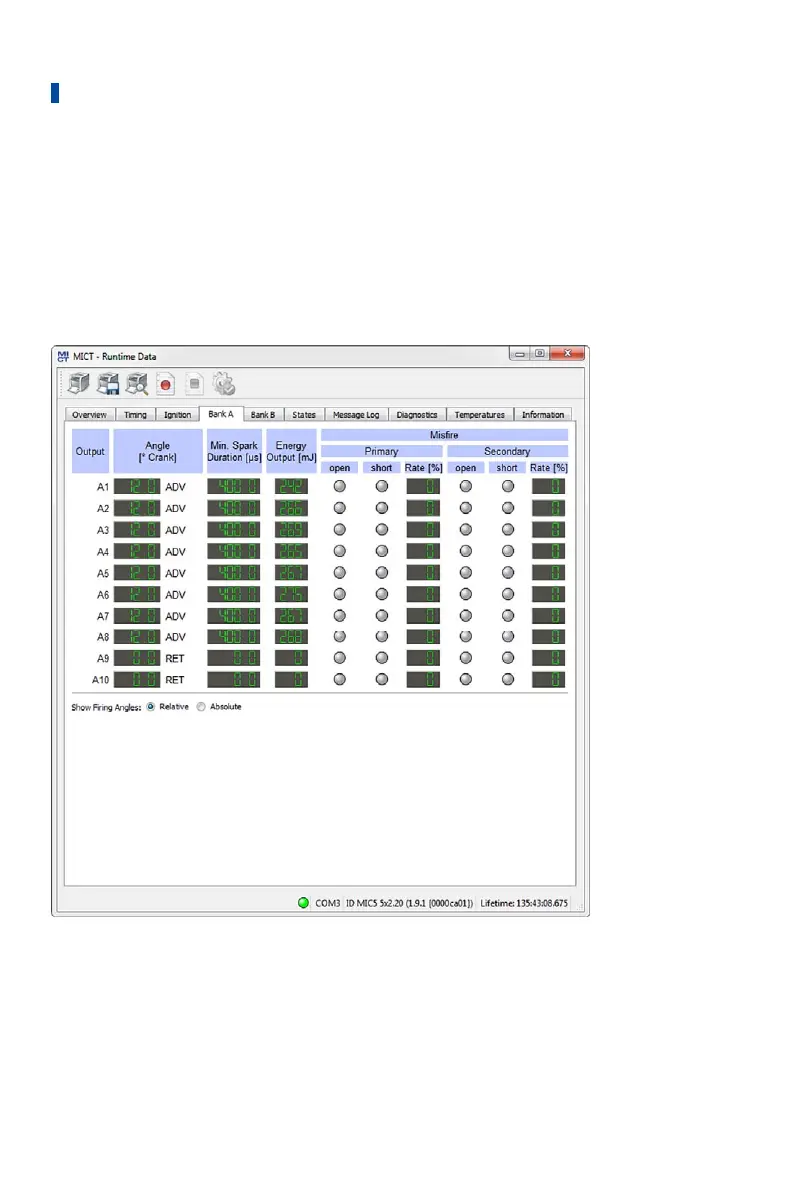

8.12.4 Runtime Data – Bank A and B
The following information is provided:
– Column: Output
Designation of the output
– Column: Cylinder
If cylinder names are assigned, these are displayed.
– Column: Angle
Current output firing angle
