8 Settings via the MICT
106 Rev. 03/2019
– Maximum Firing Angle Change Per Cycle
Specify the maximum degrees per cycle that the ignition timing may be shifted by for both
directions, i.e. between two firings of a cylinder. If the specified ignition timing adjustment
is larger than the given value, it is divided among several cycles.

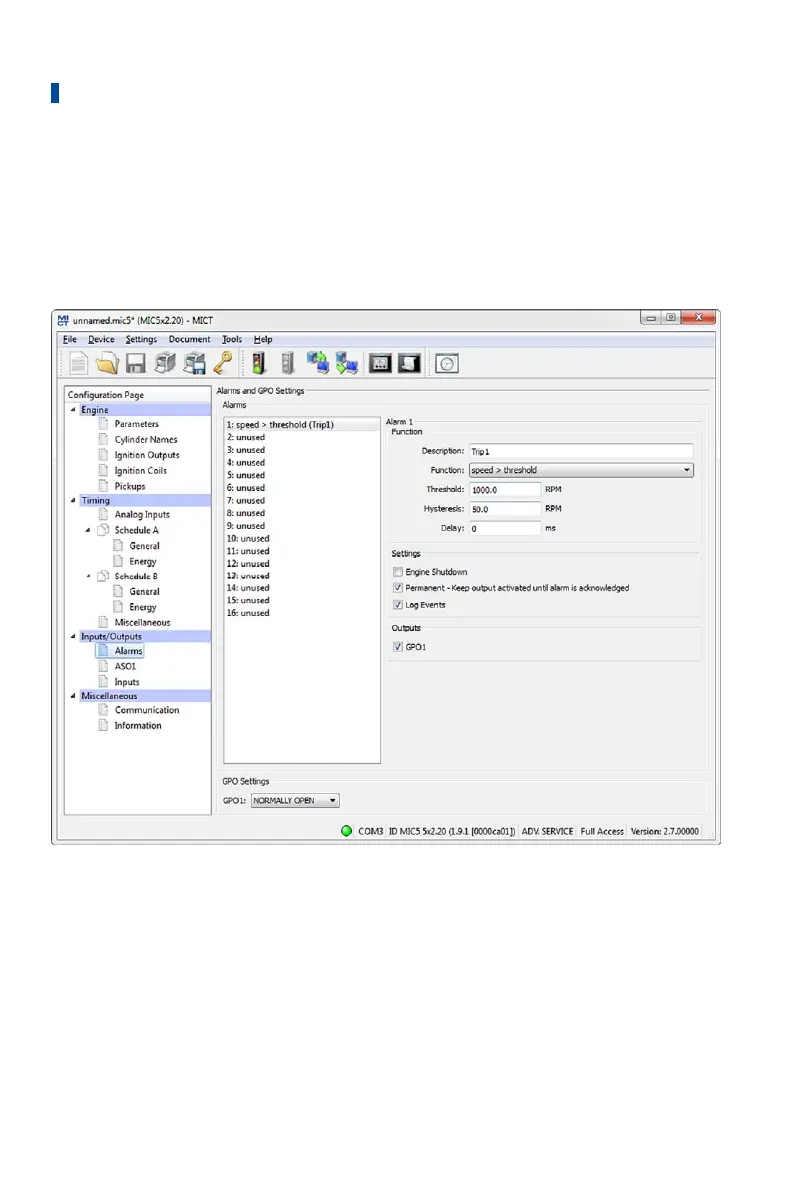

8.11.10 Inputs/Outputs – Alarms
The MIC5 ignition controllers include a total of 16 configurable alarms that can be allocated to
the general purpose outputs.
– Description
You can enter any desired description for an alarm. The description is used for logging the
alarms that have occurred in the event list in the MICT.
– Function
The alarms can be used depending on the following functions:
– Unused
– Speed above threshold / below threshold
– Engine operating hours above threshold / below threshold
