Motortech MIC5 User Manual

6 Wiring of the Device
Rev. 03/2019 41
6.1.3 Input Wiring – Pickups

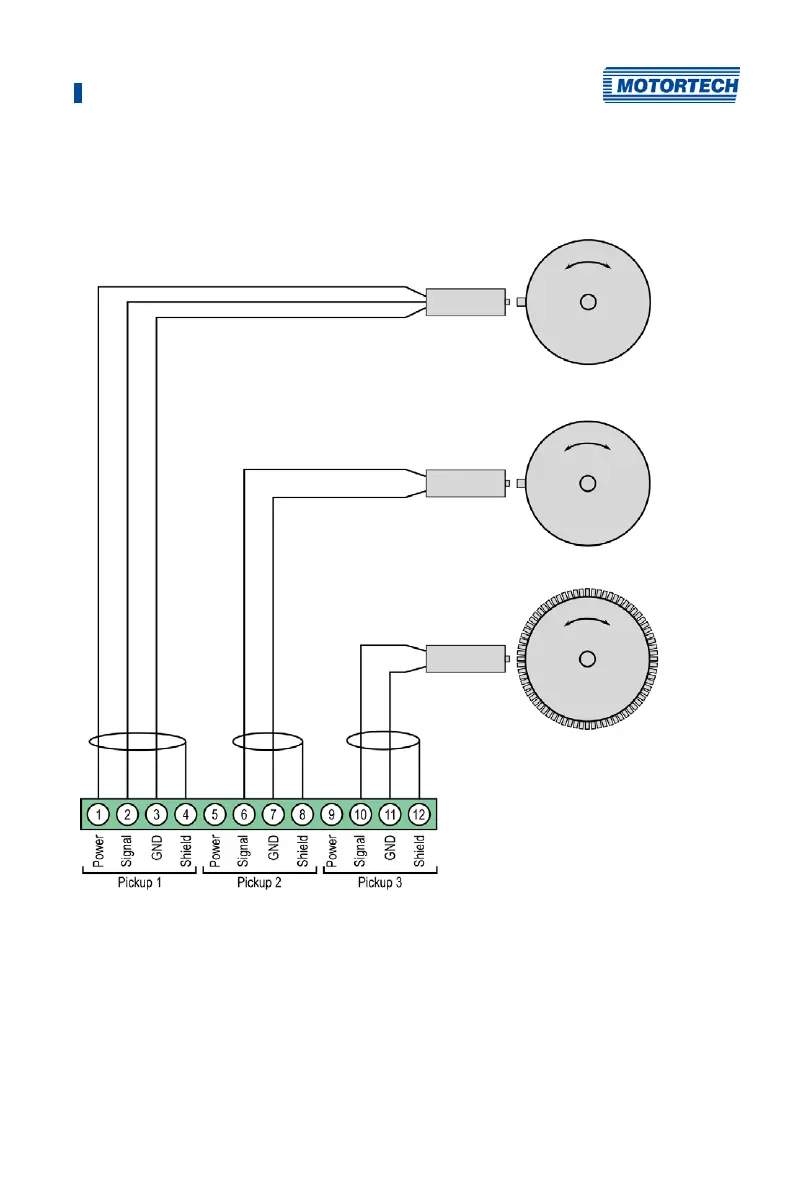

Example Configuration (one Active, two Passive Pickups)
Camshaft
Crankshaft
(Reset)
Crankshaft
The recommended distance to the triggering is 0.75 mm to 1 mm (0.03" to 0.04") for MOTORTECH
pickups. Please note that additional fine-tuning is required for every pickup position due to the
different conditions of the engines.
