8.11.7 Timing – Schedule A/B – General

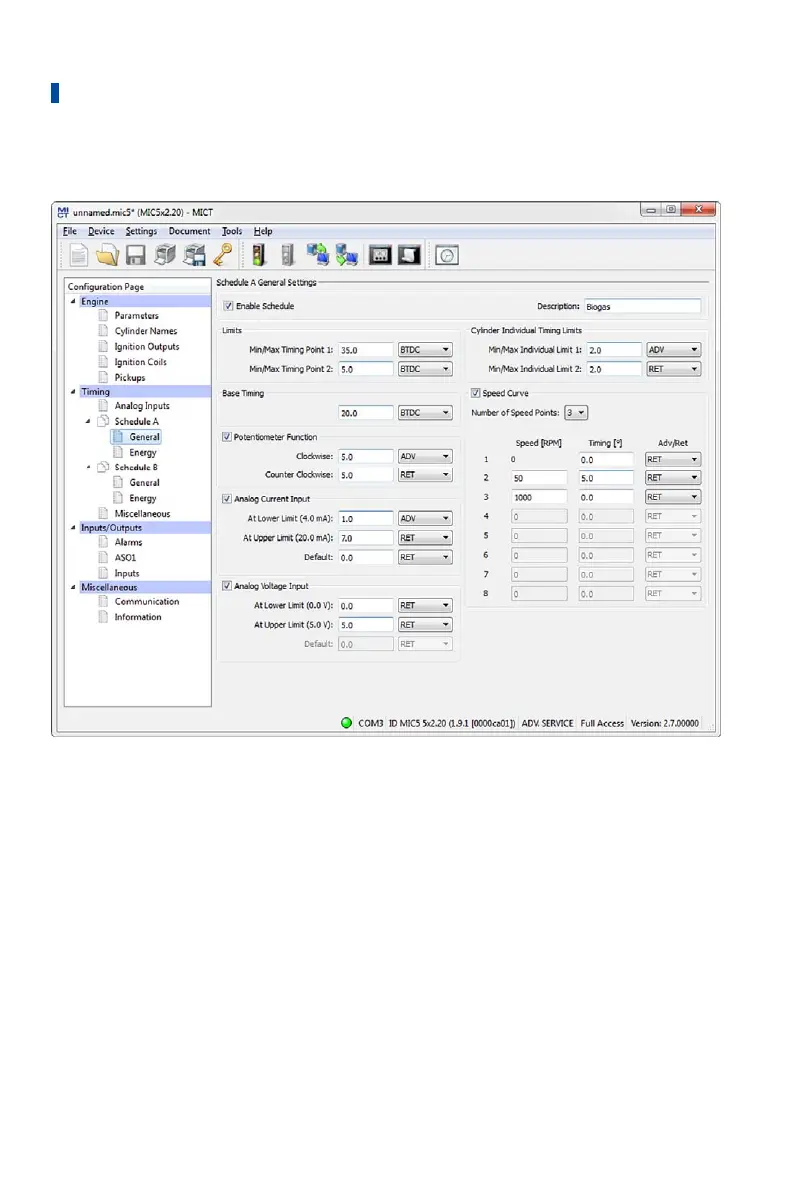

Schedule A General Settings
The MIC5 offers two schedules for implementing the necessary settings for the timing of the
engine. The schedules A and B can be used for dual fuel operation, for example. The system
switches between the schedules via the input Schedule A/B. If only one schedule is configured,
the switch is ignored. The configuration options for schedule B are identical to those for set A.
– Enable Schedule
The settings are enabled or disabled by checking/unchecking the box. One schedule must
always be activated.
– Description
Enter a description for the schedule (e.g. natural gas for the setting for this type of gas).
Limits
Enter the limits of the timing point at which the ignition can fire. The timing points of the outputs
will be limited to this range relative to the respective top dead center of the pertinent cylinder.
The global timing can then not be shifted beyond this range by any adjustments.
