8 Settings via the MICT
Rev. 03/2019 111
Various functions can be selected for the general purpose input GPI1:
– Disabled
The input GPI1 will not be used.
– CAN reset (1 s pulse), device reset (5 s pulse)
This feature allows (e.g. a master control) to trigger a CAN reset and/or a device reset
externally using a high impulse. A high impulse of 1 second leads to a reset of the CAN driver
and a high impulse of 5 seconds leads to a device reset.
– Warning acknowledge (< 3 s high), error and alarm acknowledge (> 3 s high), device reset (>
15 s high)
This feature allows (e.g. a master control) warnings, errors, and alarms to be confirmed
and/or device reset to be triggered externally using a high impulse. If the high impulse is
shorter than 3 seconds, all warnings will be confirmed. If the high impulse is longer than
3 seconds, all errors and alarms will be confirmed. If the high level lasts for more than
15 seconds, this triggers a device reset.

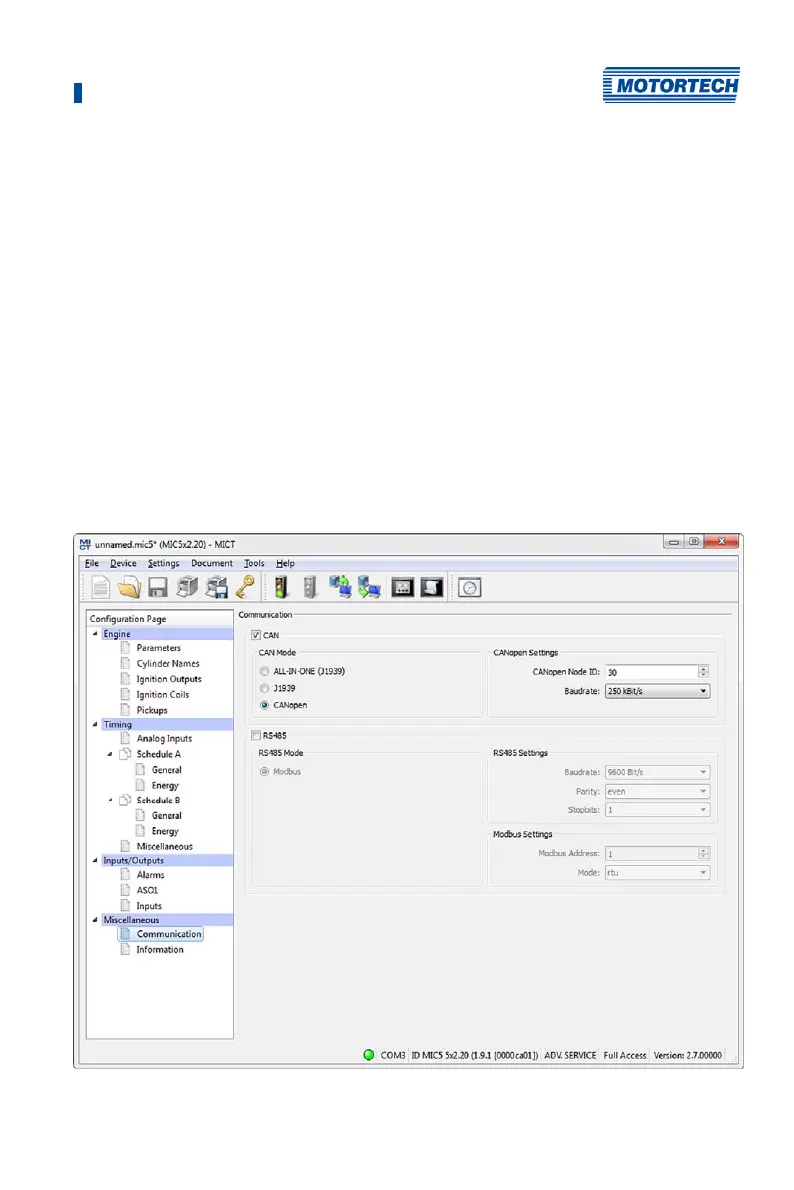

8.11.13 Miscellaneous – Communication
