Motortech MIC5 User Manual

8 Settings via the MICT
Rev. 03/2019 157
8.17.2 Min. Energy Limit Curve

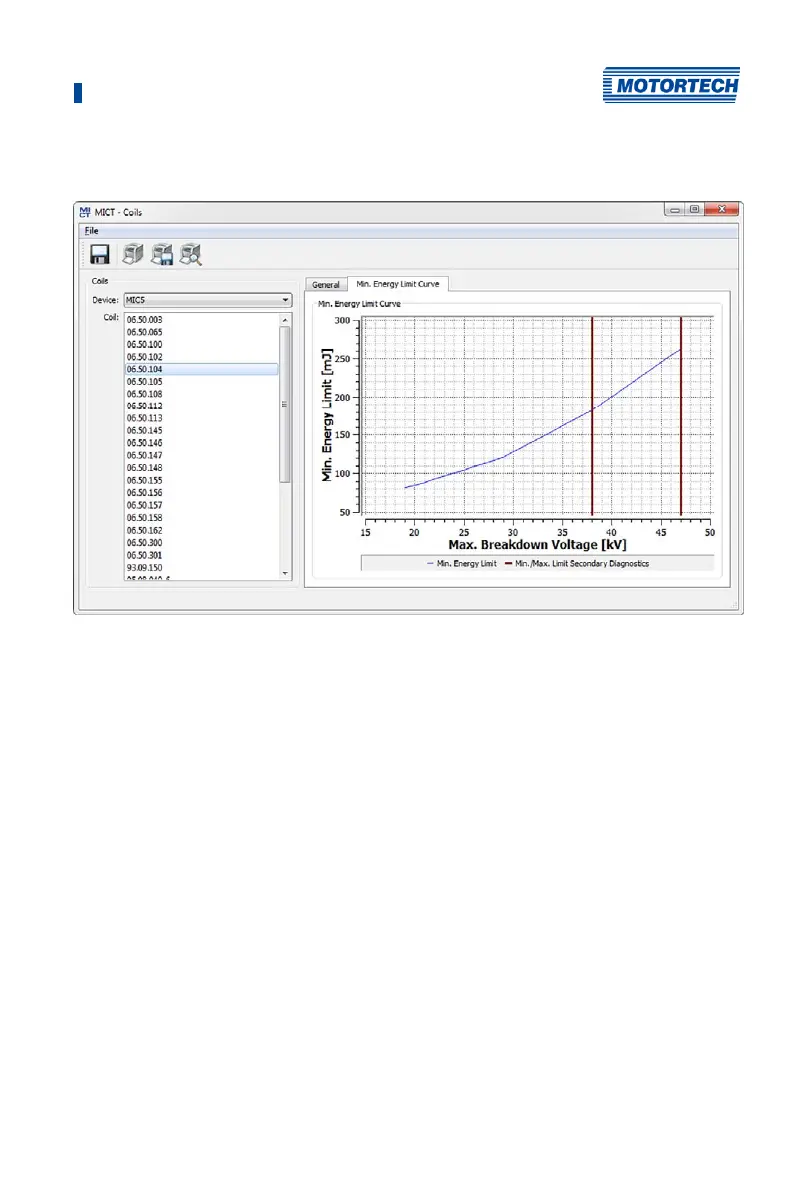

Min. Energy Limit Curve
The curve provides information on the energy in mJ necessary to achieve a certain maximum
breakdown voltage in kV. The two vertical bars show the breakdown voltage area, in kV, in which
a secondary diagnosis is possible. The corresponding energy settings can be found in the view
Timing – Schedule A/B – Energy (refer to Timing – Schedule A/B – Energy on page 104).
When printing the coil data set, the curve values are also provided as a list.
