6 Wiring of the Device
Rev. 03/2019 43
Adjusting the pickup sensitivity
Depending on the type of impulse source (interference), it may be necessary
to increase the pickup sensitivity to ensure that the resultant signal
strength is sufficient for reliable operation. You can make these
adjustments in the MICT. Refer to the section Engine – Pickups on page 96.
Aux. pickup supply voltage
An auxiliary supply voltage for active pickups can be configured using the
MICT. The voltage can be set in the range from 5 V to 24 V and is supplied at
the connections Pickup 1 Power to Pickup 3 Power. Refer to the section
Engine – Pickups on page 96.
6.1.4 Input Wiring – Timing and Safety Devices

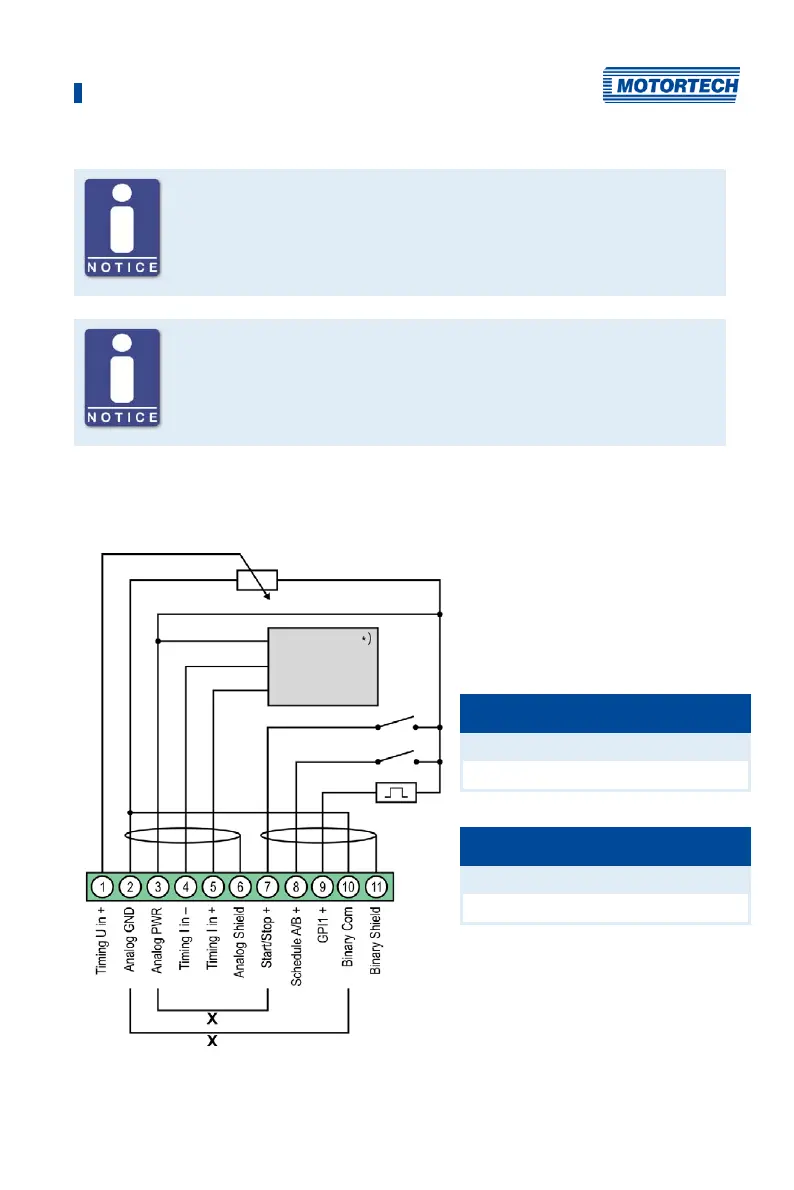

Example Configuration
*
)
See subsequent drawings for details
x = bridge for permanent authorization
(must be removed for external ignition
authorization)
Switch Start/Stop
open Ignition – OFF
closed Ignition – ON
Switch A/B
open Schedule A
closed Schedule B
