5 Installation Instructions
34 Rev. 03/2019

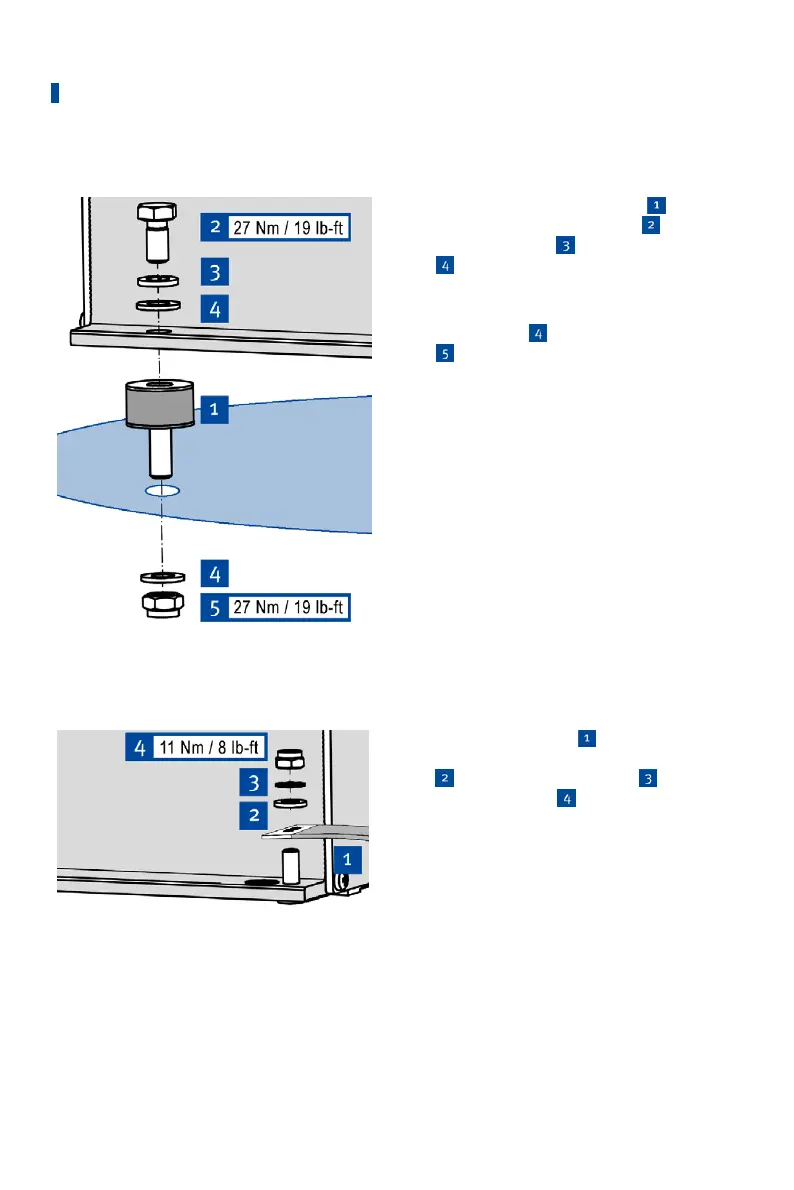

Option B
1. Fasten the four vibration dampers
to
the MIC5. Use four screws M8x16
, four
rim lock washers M8
and four washers
M8
.
2. Fasten the MIC5 to the selected installation
location using the vibration dampers. Use
four washers M8
and four lock nuts
M8
.
Fasten the ground strap to the ground
pin (see Installation of the Ground
Strap on page 34).
5.2.2 Installation of the Ground Strap
1. Fasten the ground strap
to the MIC5
ground pin. To do so, use one washer
M6
, one tooth lock washer A6 and
one poly lock nut M6
.
2. Connect the ground strap to one of the
sides suitable for grounding.
You can wire the ignition controller as
described in section Wiring of the
Device on page 36.
