8 Settings via the MICT
108 Rev. 03/2019
– Outputs
Activate the checkbox GPO1, so that the general purpose output is activated when the alarm
is triggered.
– GPO Settings
Configure the general purpose output as normally closed or normally open.
8.11.11 Inputs/Outputs – ASO1 (Auxiliary Synchronization Output)
With the auxiliary synchronization output, freely definable impulses depending on the angle of
the crankshaft can be generated. For the output, the user defines whether the angle will be
absolute or based on the global timing. The output can generate between 1 and 20 impulses and
only be assigned to one system at a time. One example of the application of the ASO output for a
detonation controller can be found in section ASO: Auxiliary Synchronization Output on page 66.

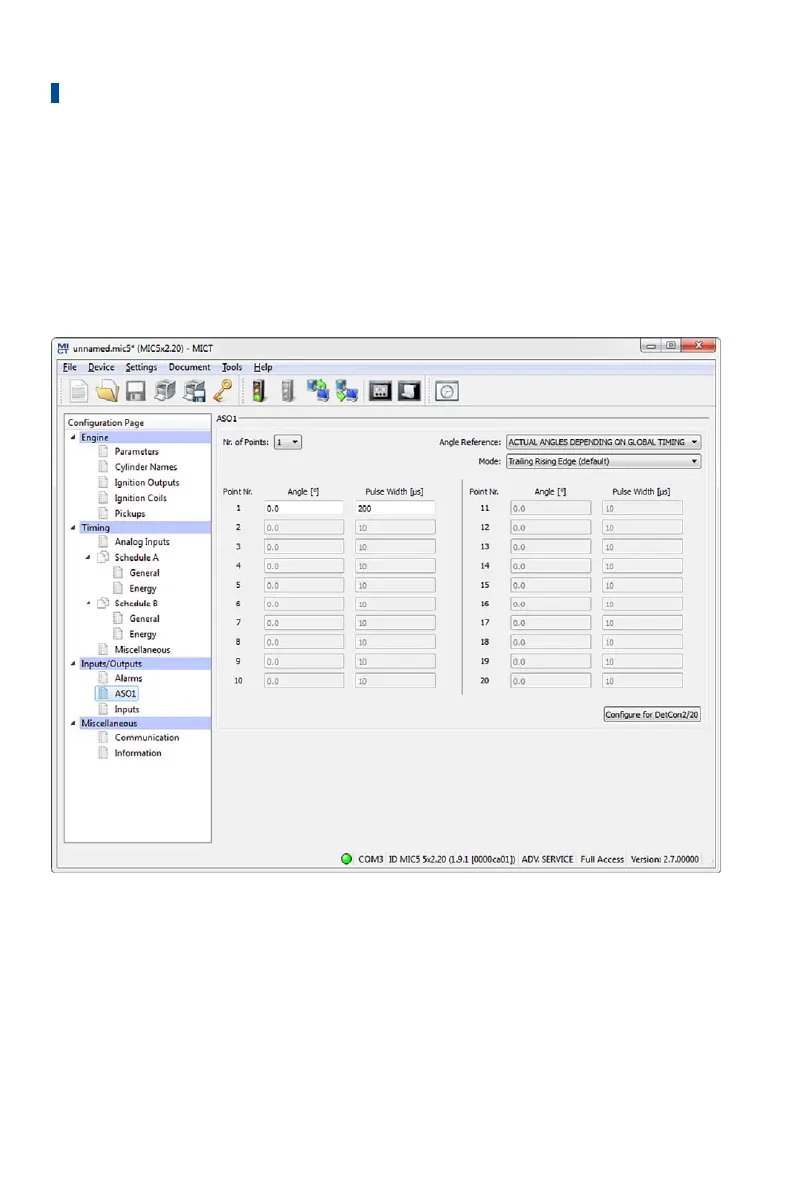

– No. of Points
Select the number of impulses from the No. of Points list. Please note that the DetCon
detonation controller devices require a single impulse with 200 µs synchronous with the
first cylinder in the ignition sequence. You can get this setting via the button Configure for
DetCon2/20.
