8 Settings via the MICT
Rev. 03/2019 149
Adjust the sensitivity of the short-circuit monitoring
If a short-circuit is misdiagnosed at a sensitivity of 1.00, the sensitivity
must be set to 1.02.
If a short-circuit is not detected at a sensitivity of 1.00, the sensitivity must
be set to 0.98.

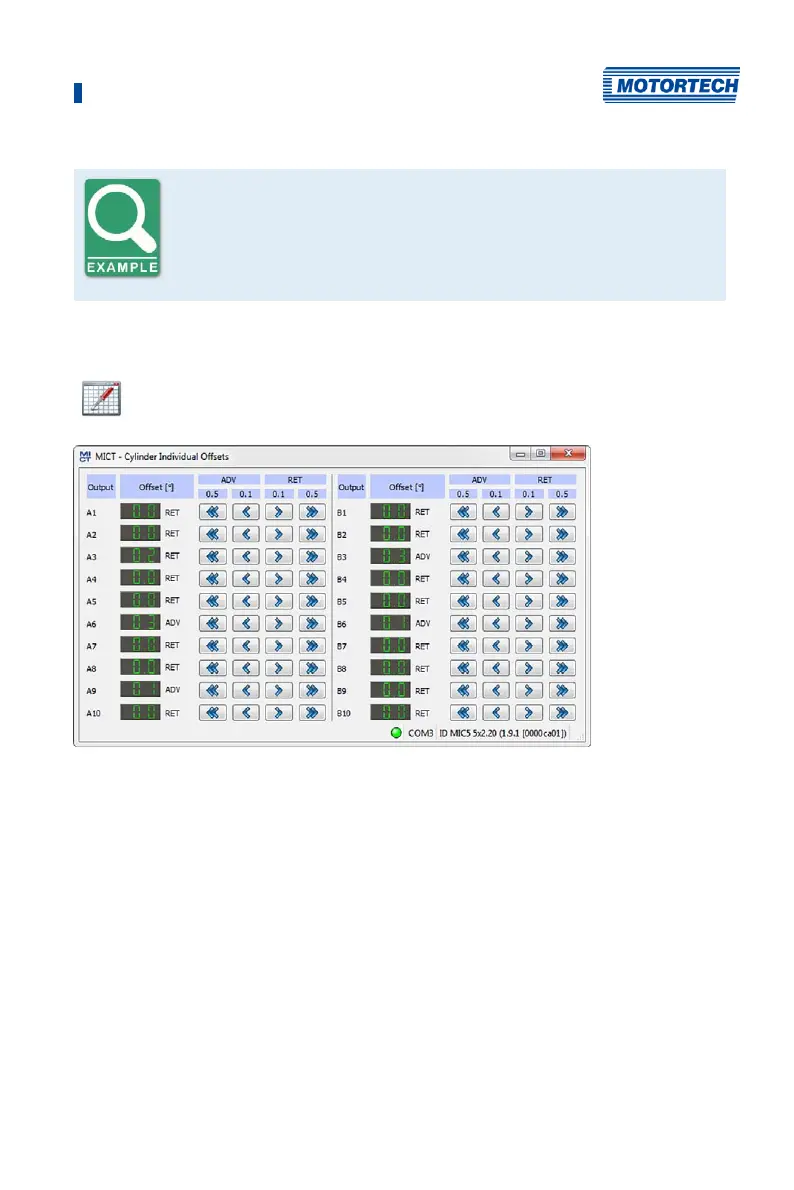

8.15 Cylinder Individual Offsets
Click on the symbol to open the window Cylinder Individual Offsets. This
window is only available to users with authorizations starting with access level
Service.
The cylinder individual offset can be applied to the position of the timing point while the
controller is being operated. Offset via keys:
– 0.1 ADV/RET
in 0.1° increments to advance or retard
– 0.5 ADV/RET
in 0.5° increments to advance or retard
The adjustment option of this function is limited by the specified settings in the configuration.
Refer to the section Timing – Schedule A/B – General on page 102.
