8 Settings via the MICT
144 Rev. 03/2019

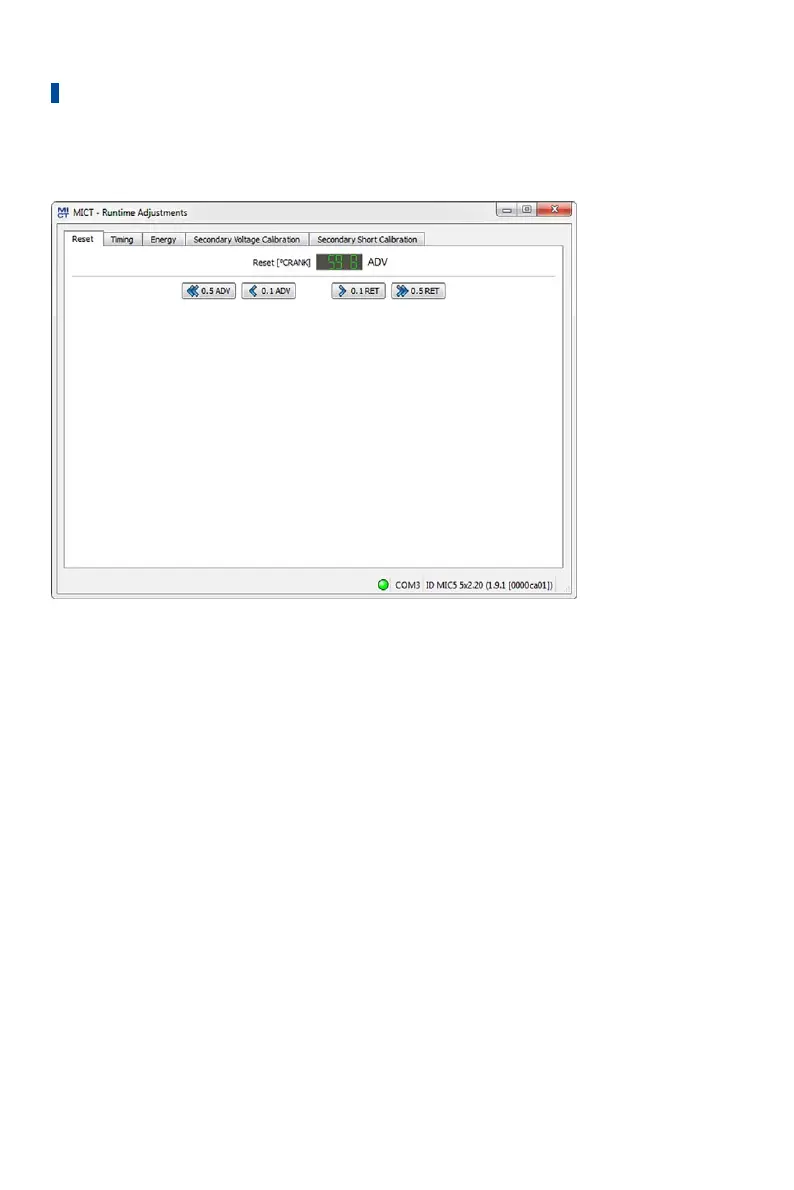

8.14.1 Runtime Adjustments – Reset
The index/reset position can be corrected by 5 °crankshaft (advanced/retarded) while the device
is being operated. The correction is made with the buttons:
– 0.1 ADV/RET
in 0.1° increments to advance or retard
– 0.5 ADV/RET
in 0.5° increments to advance or retard
Changes are implemented immediately and stored in the configuration provided in the device.
If the correction range is not sufficient, the reset/index position must be adjusted in the
configuration (refer to Engine – Pickups on page 96).
