Motortech MIC5 User Manual

8 Settings via the MICT
110 Rev. 03/2019
ASO signals depending on the ignition release
The setting in the drop down list Angle Reference determines when ASO
signals are generated:
– Actual Angles Depending on Global Timing
ASO pulses are only transmitted if ignition is active, indicated by the
green status display Firing Active in the window Runtime Data –
Overview.
– Absolute Timing
ASO pulses are generated independently of the ignition release as soon
as the synchronization of the pickups is accomplished.

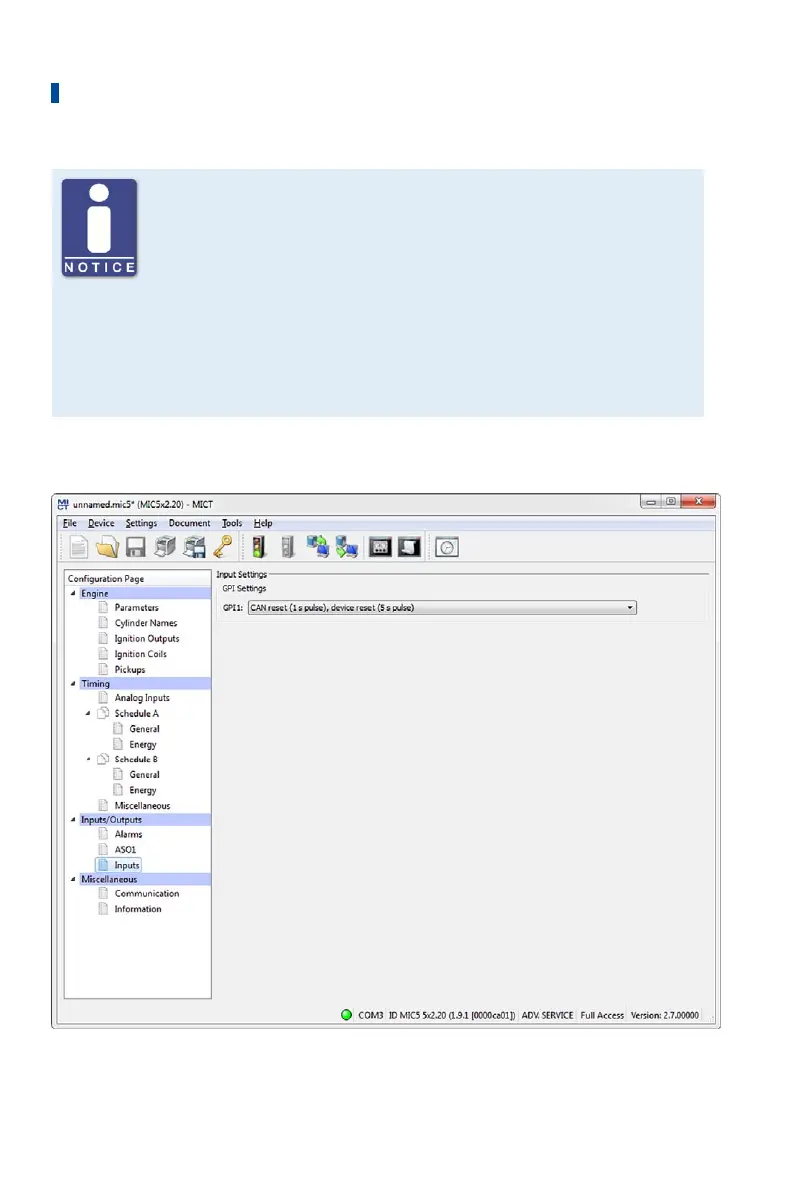

8.11.12 Inputs/Outputs – Inputs
