Motortech MIC5 - Ignition Coil Wiring for 35-Pole Connector

6 Wiring of the Device
54 Rev. 03/2019
6.2.1 Ignition Coil Wiring for a 35-Pole Connector
The table shows the pole assignments for the output connector.

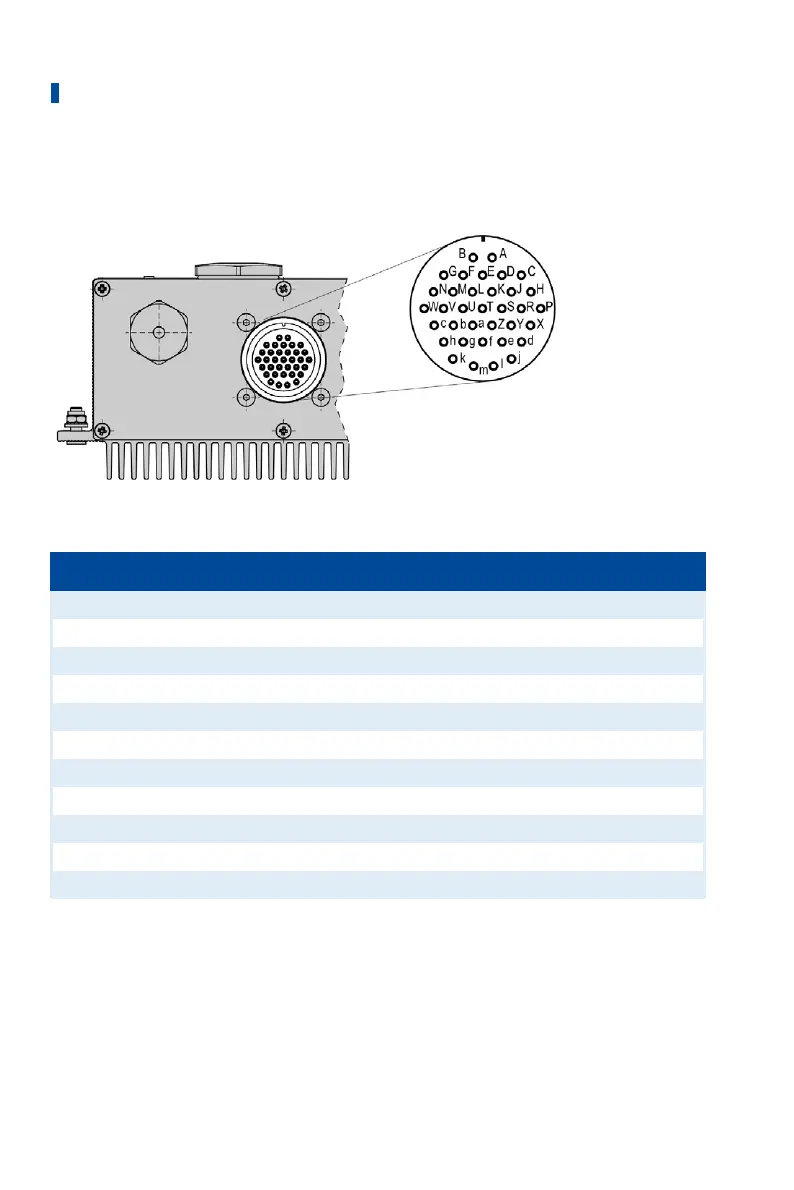

35-pole output connector (outside view)
Pole Output Pole Output
A Output A1 L Output A6
B Output B1 M Output B6
C Output A2 N Output A7
D Output B2 P Output B7
E Output A3 R Output A8
F Output B3 S Output B8
G Output A4 T Output A9
H Output B4 U Output B9
J Output A5 V Output A10
K Output B5 W Output B10
m Ground
