Motortech MIC5 User Manual

7 Functions
Rev. 03/2019 63
Configuration examples
In this example the analog inputs are configured in the Timing – Analog
Inputs window as follows:
– Input current: 4-20 mA
– Input voltage: 0-5 V

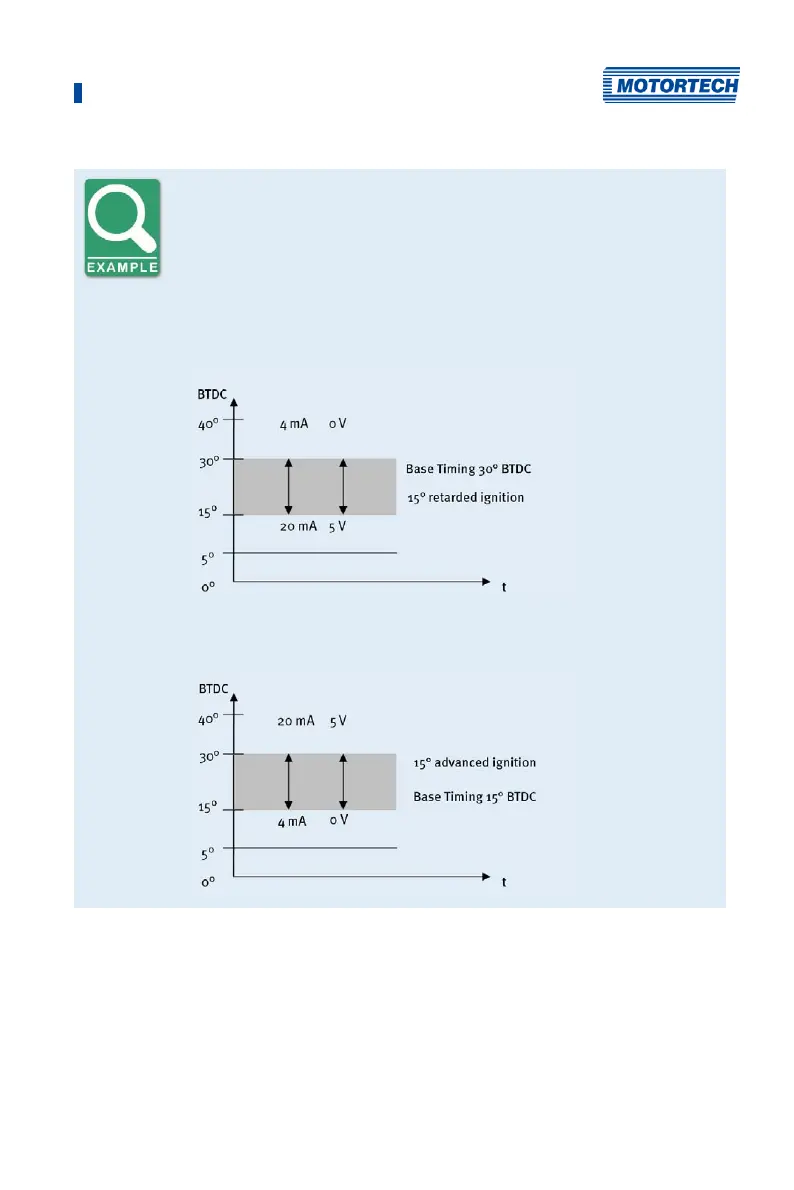

Characteristic 4-20 mA / 0-5 V – Ignition timing adjustment toward
retarded.
Characteristic 4-20 mA / 0-5 V – Ignition timing adjustment toward
advanced.
