8 Settings via the MICT
Rev. 03/2019 97
Pickup Setup
Enter the following settings in this section:
– Predefined Setup
Select the pickup configuration suitable for your application from the list. The
configurations available for selection depend on the previously entered settings.
– Index/Reset Position
Enter the distance between the first event after the set index/ reset marking and top dead
center. With the button Adjust, you can enter the measured firing angle for a given nominal
value. The system calculates the difference from these values, which is added to or
subtracted from the index/reset position.
– Pickup Sensitivity
Open the pick list and select the desired sensitivity level for the pickup. This setting
overwrites the value of the pre-trigger voltage if the latter was defined in the user-defined
pickup setup.
– High
The signal processing starts at low engine speeds. This setting can result in increased
susceptibility to failure.
– Medium
Default setting for MICT. This is a trade-off between start-up speed and sensitivity.
– Low
The signal processing does not start until high engine speeds are reached. This setting
can result in reduced susceptibility to failure.
– Trigger/Cam No. of Triggers
Enter the number of events. The input Cam or Trigger is automatically selected by the MICT
and is governed by the selection of the pre-defined pickup settings.

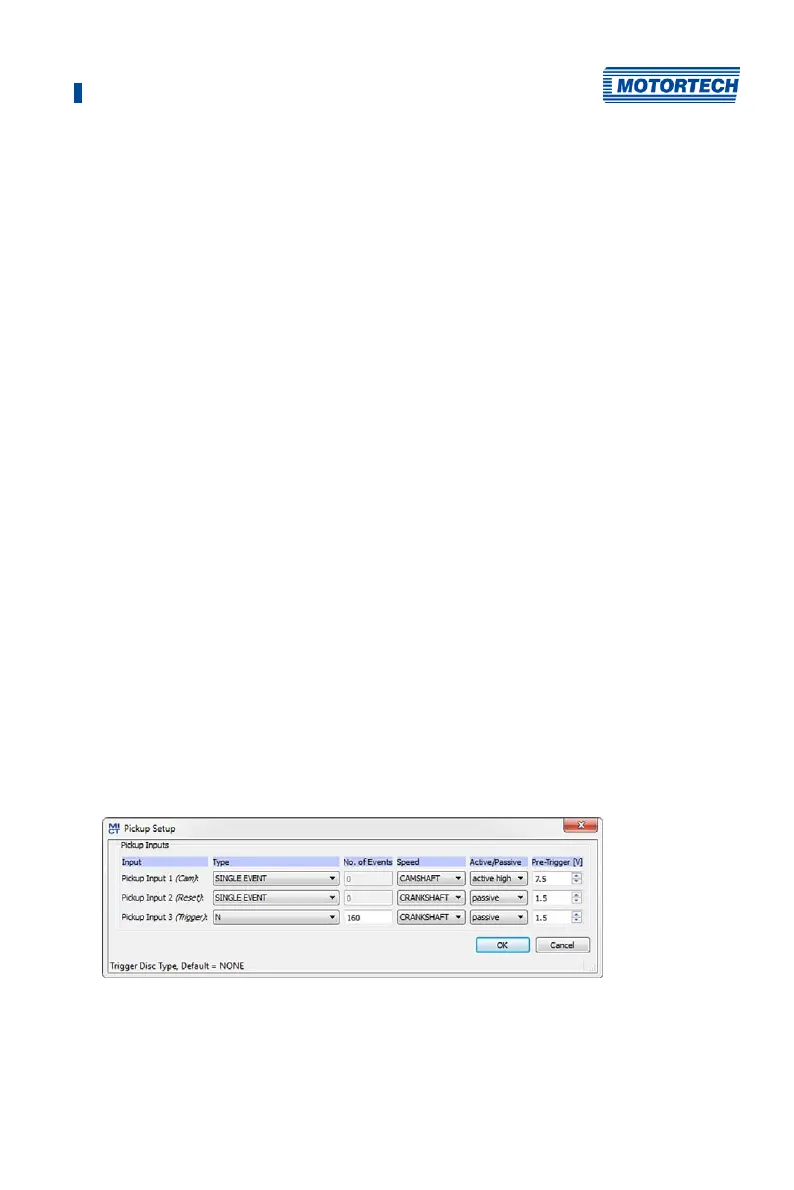

– User-defined
Staff authorized to access the Advanced Service level can, in addition to the standard
settings access, use a manual setup option by clicking on the button User-defined.
