9 Visualization
Maschinenfabrik Reinhausen GmbH 2020 2096385142/08 EN ETOS
®
ED
Parameters Option
UI measuring channels 3-ph. voltage, 1-ph. current
Measurement mode Phase-neutral
Table63: Circuit S-1

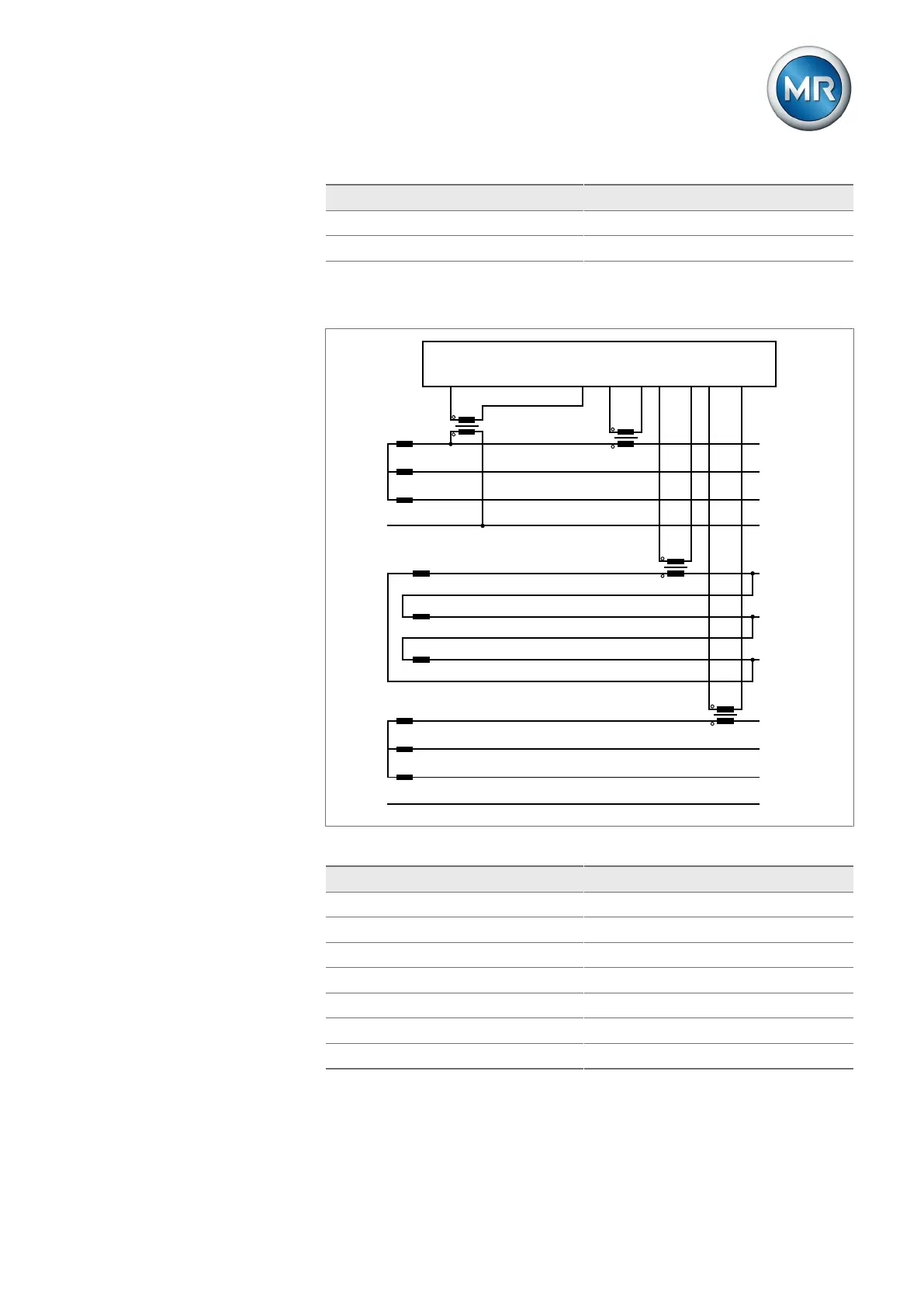

Circuit S-2
N
L1
L2
L3
N
UI
VT
CT
CT
CT
L1 L2 L3 N k1 l1 k2 l2 k3 l3
W1
L1
L2
L3
L1
L2
L3
W2
W3
If you use this circuit, set the device as follows:
Parameters Option
Voltage-transformer circuit 3 Ph phase voltage
Current-transformer circuit 3 Ph phase current
Current-transformer circuit W2 Total current
Current-transformer circuit W3 Phase current
Phase angle correction 0°
UI measuring channels 1-ph. measurement: Channel 1, 2, 3
Measurement mode -
Table64: Circuit S-2
