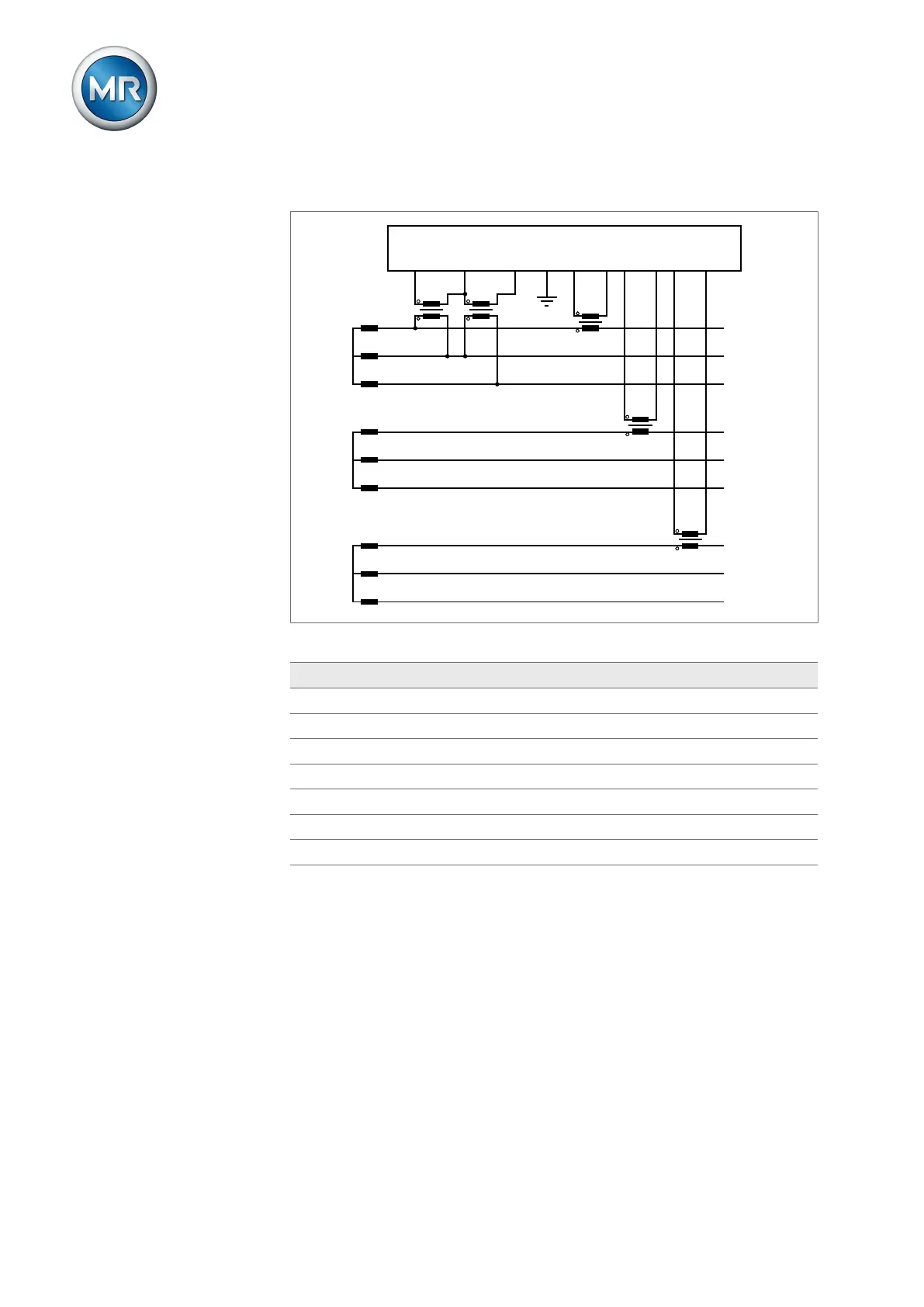

Circuit S-3
L1
L2
L3
UI
CT
CT
CT
L1 L2 L3 N k1 l1 k2 l2 k3 l3
W1
L1
L2
L3
W2
W3
L1
L2
L3
VTVT
If you use this circuit, set the device as follows:
Parameters Option
Voltage-transformer circuit -
Current-transformer circuit 3 Ph phase current
Current-transformer circuit W2 Phase current
Current-transformer circuit W3 Phase current
Phase angle correction 0°
UI measuring channels 3-ph. voltage, 1-ph. current
Measurement mode Phase-phase
Table65: Circuit S-3
